| Produktbeskrivelse
|

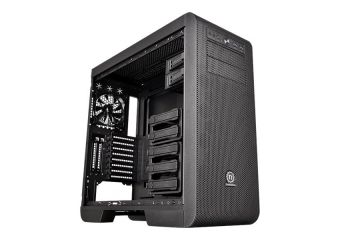

Thermaltake Core V51 - Tempered Glass Edition - tower - udvidet ATX
|
| Produkttype
|
Systemkabinet
|
| Model
|
Tower
|
| Sidepanel i vindue
|
Ja, hærdet glas
|
| Farve
|
Sort
|
| I/O-kontakter
|
2 x USB 3.0 ¦ 1 x hovedtelefoner ¦ 1 x mikrofon
|
| Understøttede motherboards
|
ATX, microATX, Mini-ITX, Extended ATX
|
| Egenskaber, systemkabinet
|
Understøtter 120 mm radiator bagtil, understøtter 120/140/240/280/360/420 mm radiator i frontpanel, understøtter 120/140/240/280/360/420 mm radiator i toppen, understøtter 120/240 mm radiator i bunden, understøtter 1/2", 3/8",1/4" vandrør
|
| Strømenhed
|
Ingen strømforsyning (PS/2)
|
| Dimensioner (B x D x H)
|
23.6 cm x 56 cm x 54 cm
|
| Vægt
|
12.3 kg
|
Produktdatablad |
|
| Model |
Tower |
| Sidepanel i vindue |
Ja |
| Materiale af sidepanel i vindue |
Hærdet glas |
| Max størrelse på bundkort |
Udvidet ATX |
| Understøttede motherboards |
ATX, microATX, Mini-ITX, Extended ATX |
| Antal interne bays |
5 |
| Antal bays med frontadgang |
2 |
| Produktmateriale |
SPCC-stål |
| Farve |
Sort |
| Kølesystem |
Front: 120 x 120 x 25 mm ventilator x 2 / indtag / 1000 rpm / 16 dBA / 1 x 120 mm eller 2 x 140 mm eller 1 x 200 mm blæser understøttet ¦ Bagside: 120 x 120 x 25 mm ventilator x 1 / udstødning / 1000 rpm / 16 dBA / 1 x 140 mm blæser understøttet ¦ Top: 200 mm blæserstativ x 2 / 3 x 120/140 mm blæser understøttet ¦ Nederst: 120 mm blæserstativ x 2 |
| Maks. højde for CPU-køler |
310 mm |
| Maks. længde for videokort |
480 mm |
| Egenskaber, systemkabinet |
Understøtter 120 mm radiator bagtil, understøtter 120/140/240/280/360/420 mm radiator i frontpanel, understøtter 120/140/240/280/360/420 mm radiator i toppen, understøtter 120/240 mm radiator i bunden, understøtter 1/2", 3/8",1/4" vandrør |
| Udvidelses-båse |
2 (total) / 2 (fri) x frontadgang - 5.25" ¦ 5 (total) / 5 (fri) x intern - 2,5" / 3,5" delt |
| Ekspansionsåbninger |
8 |
| Interface |
2 x USB 3.0 ¦ 1 x hovedtelefoner - mini-jack ¦ 1 x mikrofon - mini-jack |
| Strømenhed |
Ingen strømforsyning |
| Specifikationsoverensstemmelse |
PS/2 |
| Bredde |
23.6 cm |
| Dybde |
56 cm |
| Højde |
54 cm |
| Vægt |
12.3 kg |
Thermaltake Core V51 mid-tower chassis, a member of the Core Series, retaining the curved metal mesh look and delivering an outstanding cooling performance with the compatibility for the extensive DIY/AIO LCS, and the air cooling units that the series has become so very well known for. Core V51 is an enthusiast's grade mid-tower that creates unprecedented space for high-end hardware and liquid cooling expansion.
Core V51 enables users to build a complete high-end system, whilst supporting up to either 420mm radiator liquid cooling, or 200 mm case fans, with a long graphic card at the same time, and simultaneously protecting the user's hardware as well as increasing the CPU's overclocking potential. Most importantly, it has the capability to deliver an outstanding cooling efficiency throughout the entire case.
