| Produktbeskrivelse
|
Fujitsu PSAS CP400i - styreenhed til lagring (RAID) - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8
|
| Enhedstype
|
Styreenhed til lagring (RAID) - indstikskort
|
| Bustype
|
PCIe 3.0 x8
|
| Interface
|
SATA 6Gb/s / SAS 12Gb/s
|
| Dataoverførselshastighed
|
12 Gbit/s
|
| Understøttede enheder
|
Harddisk, diskarray (RAID), solid state drev
|
| Antal kanaler
|
8
|
| RAID-niveau
|
RAID 0, RAID 1
|
| Designet for
|
Celsius C740, M7010, M7010power, M740, M740 POWER, M770powerx, M770x, R940, R940 POWER, R970, R970B, R970Bpower, R970power
|
Produktdatablad |
|
| Enhedstype |
Styreenhed til lagring (RAID) - indstikskort |
| Host Bus |
PCIe 3.0 x8 |
| Interface |
SATA 6Gb/s / SAS 12Gb/s |
| Dataoverførselshastighed |
12 Gbit/s |
| Understøttede enheder |
Harddisk, diskarray (RAID), solid state drev |
| Antal kanaler |
8 |
| RAID-niveau |
RAID 0, RAID 1 |
| Processor |
LSI LSISAS3008 |
| Interface |
1 x SATA 6Gb/s / SAS 12Gb/s (intern) |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
55 °C |
| Designet for |
Fujitsu Celsius C740, M7010, M7010power, M740, M740 POWER, M770powerx, M770x, R940, R940 POWER, R970, R970B, R970Bpower, R970power |

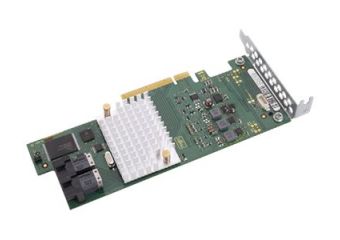

The PSAS CP400i, eight port SAS/SATA host bus adapter provides increased connectivity and maximum performance for high-end servers and applications within internal storage. Performance is based on the LSI SAS3008 IO controller, integrating the latest enhancements in SAS and PCI Express 3.0 technology.
The PSAS CP400i provides two x4 internal SFF8643 (Mini-SAS HD), enabling a low profile solution that can achieve over 1 million IOPs. The PSAS CP400i adapter is backwards compatible with previous SAS and PCI generations through automatic negotiation and provides SAS data transfer rates of 12, 6 and 3 Gb/s per lane and SATA data transfer rates of 6 and 3 Gb/s per lane.
