| Produktbeskrivelse
|

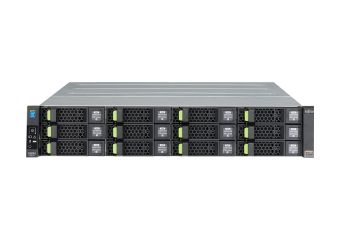

Fujitsu ETERNUS DX 60 S3 - harddisk-array
|
| Enhedstype
|
Harddisk-array
|
| Pakningstype
|
Rackversion - 2U
|
| Maks. antal understøttet
|
144 TB
|
| Grænseflade
|
8Gb Fibre Channel
|
| Maksimum antal LUN'er
|
1024
|
| Installeret udstyr/antal moduler
|
12 (maks.)
|
| Understøttede drev
|
SAS-2
|
| Controller for lagring
|
RAID (SAS 6Gb/s) - RAID RAID 0, 1, 5, 6, 10, 50
|
| Harddisk
|
Ingen HDD
|
| Effekt
|
AC 120/230 V - 50/60 Hz
|
| Overskudsspænding
|
Ja
|
| Dimensioner (B x D x H)
|
48.2 cm x 67 cm x 8.8 cm
|
| Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
| Enhedstype |
Harddisk-array |
| Pakningstype |
Rackversion - 2U |
| Understøttet udstyr/antal moduler |
12 |
| Understøttede drev |
SAS-2 |
| Maks. antal understøttet |
144 TB |
| HDD array Extern Grænseflade |
8Gb Fibre Channel |
| Maksimum antal LUN'er |
1024 |
| Type |
RAID |
| Interfacetype |
SAS 6Gb/s |
| Cache-/Bufferstørrelse (Maks.) |
2 GB |
| RAID-niveau |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50 |
| Type |
Ingen HDD |
| Udvidelses-båse |
12 (total) / 12 (fri) x hot-swap - 3.5" |
| Interface |
1 x Ethernet 1000Base-T (administration) ¦ 2 x 8Gb Fibre Channel |
| Egenskaber |
92 % effektiv strømforsyning, SNMP-support |
| Overensstemmelsesstandarder |
VCCI, C-Tick, CISPR 22 Klasse A, GS, EN55024, EN55022 Klasse A, CB, ICES-003 Klasse A, FCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FCC CFR47, GOST-R, CSA C22.2 No. 60950-1, Directive 2004/108/EC, Directive 2006/95/EC, VCCI Class A, Directive 2011/65/EC, EAC, CNS 13438 |
| Strømenhed |
Intern strømforsyning |
| Maks. antal understøttet |
2 |
| Overskudsspænding |
Ja |
| Nødvendig spænding |
AC 120/230 V - 50/60 Hz |
| Bredde |
48.2 cm |
| Dybde |
67 cm |
| Højde |
8.8 cm |
| Service & Support |
Begrænset garanti - 3 år - on-site |
| Min. driftstemperatur |
10 °C |
| Maks. driftstemperatur |
40 °C |
| Fugtighedsgrad ved brug |
20 - 80 % (ikke-kondenserende) |
| Lydudbredelse |
49 dBA |
Delivering reliable operation at an affordable price makes ETERNUS DX60 S3 an ideal disk storage system for small and medium-sized IT environments. Management software, included at no extra cost, reduces administration effort and provides functionality to ensure data protection. Flexible support for different network connections and disk types enables choice in cost and performance optimization. Designed for smaller environments it provides remarkable scalability in storage capacity offering good headroom for future growth. The perfect storage solution for consolidation of distributed data and for smaller server virtualization projects.
