| Produktbeskrivelse
|

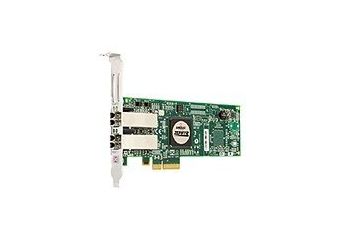

Emulex LightPulse LPe11002 - vært bus adapter - PCIe x4 - 4Gb Fibre Channel x 2
|
| Enhedstype
|
Vært bus adapter
|
| Model
|
Indstikskort - lavprofil
|
| Grænseflade (bus) type
|
PCI Express x4
|
| Porte
|
4Gb Fibre Channel x 2
|
| Dimensioner (B x D x H)
|
16.8 cm x 6.4 cm
|
| Kabeltype
|
Fiberoptik
|
| Dataforbindelsesprotokol
|
4Gb Fibre Channel
|
| Dataoverførselshastighed
|
4.24 Gbps
|
| Systemkrav
|
Novell NetWare, Linux, Microsoft Windows 2000, Microsoft Windows Server 2003
|
| Designet for
|
FibreCAT NX40; PRIMERGY BX620 S4, BX620 S5, RX200 S4, RX200 S5, RX200 S6, RX300 S3, RX300 S5, RX300 S6, RX330 S1
|
Produktdatablad |
|
| Enhedstype |
Vært bus adapter |
| Model |
Indstikskort - lavprofil |
| Grænseflade (bus) type |
PCI Express x4 |
| Porte |
4Gb Fibre Channel x 2 |
| Forbindelsesteknologi |
Kabling |
| Kabeltype |
Fiberoptik |
| Dataforbindelsesprotokol |
4Gb Fibre Channel |
| Fiberkanal |
FC-AL-2, FC-FCP-2, FC-FLA, FC-FS, FC-GS-4, FC-PH-3, FC-PLDA, FC-Tape |
| Dataoverførselshastighed |
4.24 Gbps |
| Interface |
2 x 4Gb Fibre Channel - LC multimodus - x 2 |
| Kompatible åbninger |
1 x PCI Express x4 - low-profile |
| Overensstemmelsesstandarder |
FCC Klasse A certificeret, TUV, BSMI CNS 13438 Class A, EN 60950, VCCI Klasse A ITE, UL 60950, CB, FCC Part 15, MIC, ICES-003 Klasse A, CSA C22.2 |
| OS nødvendig |
Novell NetWare, Linux, Microsoft Windows 2000, Microsoft Windows Server 2003 |
| Dybde |
16.8 cm |
| Højde |
6.4 cm |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
45 °C |
| Fugtighedsgrad ved brug |
5 - 95% |
| Designet for |
Fujitsu FibreCAT NX40 ¦ Fujitsu PRIMERGY BX620 S4, BX620 S5, RX200 S4, RX200 S5, RX200 S6, RX300 S3, RX300 S5, RX300 S6, RX330 S1 |
The Emulex LightPulse LP11002 delivers on Emulex's history of excellence in performance, reliability, and manageability. The LP11002 is a high performance, dual-channel PCI-X 2.0 Fiber Channel HBA that's ideally suited for large enterprise or mixed operating system Storage Area Network (SAN) environments. With renowned driver support for Windows, Linux, and UNIX operating systems, the LightPulse LP11002 can be effectively applied within a broad range of storage networking solutions.
