| Produktbeskrivelse
|

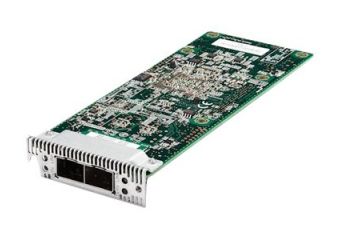

Emulex Dual Port 10GbE SFP+ Embedded Adapter for IBM System x - netværksadapter - Advanced Mezzanine Card (AMC) - 2 porte
|
| Enhedstype
|
Netværksadapter
|
| Model
|
Integreret
|
| Grænseflade (bus) type
|
Advanced Mezzanine Card (AMC)
|
| Dimensioner (B x D x H)
|
1.7 cm x 16 cm x 6 cm
|
| Antal porte
|
2 porte
|
| Dataforbindelsesprotokol
|
10 GigE
|
| Dataoverførselshastighed
|
10 Gbps
|
| Netværks/overføselsprotokol
|
TCP/IP, UDP/IP
|
| Overensstemmelsesstandarder
|
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1Qbb, IEEE 802.1Qaz
|
| Systemkrav
|
SUSE Linux Enterprise Server, Microsoft Windows Server, VMware ESX Server, Red Hat Enterprise Linux Server
|
| Designet for
|
System x iDataPlex dx360 M4; System x3550 M4; x3650 M4
|
Produktdatablad |
|
| Enhedstype |
Netværksadapter - 2 porte |
| Model |
Integreret |
| Grænseflade (bus) type |
Advanced Mezzanine Card (AMC) |
| Forbindelsesteknologi |
Kabling |
| Dataforbindelsesprotokol |
10 Gigabit Ethernet |
| Dataoverførselshastighed |
10 Gbps |
| Netværks/overføselsprotokol |
TCP/IP, UDP/IP |
| Egenskaber |
Fejltolerance, aktivitet, VLAN-understøttet, IPv6 understøttet, Jumbo Frames support, TCP Chimney Offload support, IPv4 support, teaming support, PXE support, Large Send Offload (LSO), adaptiv lastafbalancering (ALB) |
| Overensstemmelsesstandarder |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1Qbb, IEEE 802.1Qaz |
| Interface |
2 x netværk - SFP+ |
| Kompatible åbninger |
1 x Advanced Mezzanine Card (AMC) |
| OS nødvendig |
SUSE Linux Enterprise Server, Microsoft Windows Server, VMware ESX Server, Red Hat Enterprise Linux Server |
| Bredde |
1.7 cm |
| Dybde |
16 cm |
| Højde |
6 cm |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
55 °C |
| Fugtighedsgrad ved brug |
5 - 95 % (ikke-kondenserende) |
| Designet for |
Lenovo System x iDataPlex dx360 M4 ¦ Lenovo System x3550 M4 ¦ Lenovo System x3650 M4 |
The Emulex 10GbE Virtual Fabric Adapters III for IBM System x are members of IBM's comprehensive networking portfolio of 10 Gb Ethernet (10GbE) converged network adapters (CNAs). They deliver industry-leading performance and scalability per watt, reducing requirements for power and cooling. Storage protocol offloads enable the efficient use of computing resources and the support of more virtual machines per CPU, and reduce the number of servers required to support data center demands.
