| Produktbeskrivelse
|
Datapath VisionAV VisionAV-HD - videooptagelsesadapter - PCIe x4
|
| Enhedstype
|
Videooptagelsesadapter
|
| Grænsefladetype
|
PCIe x4
|
| Dimensioner (B x D x H)
|
17 cm x 11 cm
|
| Videoindgang
|
Komposit videoindgang, DVI-Analog/Digital (dual link)
|
| Video Modes
|
1080p
|
| Analogvideoformat
|
NTSC, SECAM, PAL
|
| Analogvideosignal
|
Sammensat video
|
| Komprimeret video format
|
YUV 4:2:2
|
| Hastighed ved digital videooptagelse
|
60 frames pr. sekund
|
| Opløsning ved digital videooptagelse
|
720 x 576, 1920 x 1080
|
| Understøttelse af lydindgang
|
Standard
|
| Egenskaber
|
Multi-streaming
|
| OS nødvendig
|
Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Vista / XP / 7 / 8
|
| Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
| Enhedstype |
Videooptagelsesadapter |
| Grænsefladetype |
PCIe x4 |
| Dybde |
17 cm |
| Højde |
11 cm |
| Grænsefladetype |
Komposit videoindgang, DVI-Analog/Digital (dual link) |
| Video Modes |
1080p |
| Analogvideoformat |
NTSC, SECAM, PAL |
| Analogvideosignal |
Sammensat video |
| Komprimeret video format |
YUV 4:2:2 |
| Hastighed ved digital videooptagelse |
60 frames pr. sekund |
| Opløsning ved digital videooptagelse |
720 x 576, 1920 x 1080 |
| Understøttelse af lydindgang |
Standard |
| Audio Sampling Format |
Stereo 16-bit / 48 kHz, stereo 16-bit / 44,1 kHz, stereo 16-bit / 96 kHz |
| Egenskaber |
Multi-streaming |
| Interface |
2 x skærm/video - DVI-Analog/Digital (dual link) - 24+5 pin kombineret DVI ¦ 1 x skærm/video - komposit videoindgang - RCA |
| Kompatible åbninger |
1 x PCI Express x4 - half-length, full-height |
| Med software |
Drivers & Utilities |
| OS nødvendig |
Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Vista / XP / 7 / 8 |
| Service & Support |
Begrænset garanti - 3 år |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
35 °C |
| Fugtighedsgrad ved brug |
5 - 90 % (ikke kondenserende) |

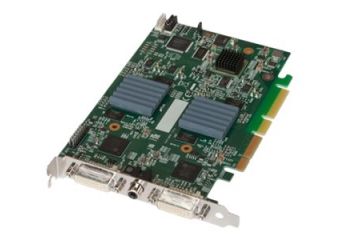

The VisionAV-HD is a four lane PCI Express capture card with three video capture inputs - two supporting HD capture and a third supporting SD composite video, these three independent video channels can be captured simultaneously. The VisionAV-HD also adds multiple channels of audio capture, which can be synchronized in software using time stamping with all video capture channels. The VisionAV-HD also adds embedded audio capture from the HDMI signal, which can be sychronised with the respective video channel. This provides a single flexible card solution for areas such as medical, lecture capture, web casting and video conferencing.
