Produktbeskrivelse
|

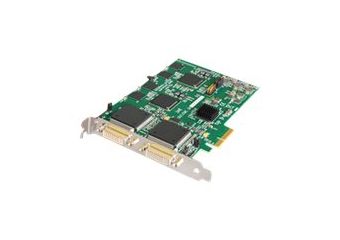

Datapath Vision VisionRGB-E2S - videooptagelsesadapter - PCIe x4
|
Enhedstype
|
Videooptagelsesadapter
|
Grænsefladetype
|
PCIe x4
|
Dimensioner (B x D x H)
|
17 cm x 11 cm
|
Videoindgang
|
Komponentvideoindgang, VGA-indgang, DVI-Analog/Digital-input, HDMI-indgang
|
Video Modes
|
480p, 720p, 1080i, 1080p, 480i, 576i, 576p
|
Analogvideosignal
|
RGB
|
Hastighed ved digital videooptagelse
|
60 frames pr. sekund
|
Opløsning ved digital videooptagelse
|
640 x 480, 1600 x 1200, 1024 x 768, 1280 x 1024, 800 x 600, 2048 x 1536, 1920 x 1080
|
Understøttelse af lydindgang
|
Ikke relevant
|
OS nødvendig
|
Microsoft Windows XP Professional, Microsoft Windows Server 2003, Microsoft Windows Vista, Microsoft Windows Server 2008, Microsoft Windows 7 (32/64 bits)
|
Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
Enhedstype |
Videooptagelsesadapter |
Grænsefladetype |
PCIe x4 |
Dybde |
17 cm |
Højde |
11 cm |
Grænsefladetype |
Komponentvideoindgang, VGA-indgang, DVI-Analog/Digital-input, HDMI-indgang |
Video Modes |
480p, 720p, 1080i, 1080p, 480i, 576i, 576p |
Analogvideosignal |
RGB |
Hastighed ved digital videooptagelse |
60 frames pr. sekund |
Opløsning ved digital videooptagelse |
640 x 480, 1600 x 1200, 1024 x 768, 1280 x 1024, 800 x 600, 2048 x 1536, 1920 x 1080 |
Understøttelse af lydindgang |
Ikke relevant |
Interface |
2 x skærm/video - DVI-Analog/Digital (dual link) - 24+5 pin kombineret DVI ¦ 1 x skærm/video - komponentvideoindgang - med adapter ¦ 1 x skærm/video - VGA-indgang - med adapter ¦ 1 x skærm/video - HDMI-indgang - med adapter |
Kompatible åbninger |
1 x PCI Express x4 |
Medfølgende ledninger |
1 x DVI-VGA adapter ¦ 1 x adapter til komponentvideo ¦ 1 x HDMI-DVI adapter |
Med software |
Drivers & Utilities |
OS nødvendig |
Microsoft Windows XP Professional, Microsoft Windows Server 2003, Microsoft Windows Vista, Microsoft Windows Server 2008, Microsoft Windows 7 (32/64 bits) |
Service & Support |
Begrænset garanti - 3 år |
Min. driftstemperatur |
0 °C |
Maks. driftstemperatur |
35 °C |
Fugtighedsgrad ved brug |
5 - 90 % (ikke kondenserende) |
The VisionRGB-E2S, a stand alone PCI Express x4 plug in capture card, delivers extreme performance with 650 MB/s transfer bus bandwidth providing a further improvement to the 480 MB/s of the VisionRGB-E2. The VisionRGB-E2S captures the Analog/DVI data and triple buffers it into onboard storage. This data is then copied using DMA to the host system for display, storage or streaming.
When a Datapath graphics card is used, the VisionRGB-E2S transfers the data directly to the graphics card thereby increasing performance. The VisionRGB-E2S capture card sends the relevant portions of each channel to use its graphics engine to render the data. This fully utilizes the hardware and dramatically increases performance.
When the RGB/DVI data is displayed on a non Datapath graphics card, the VisionRGB-E2S sends the data to system memory or direct to the graphics card, dependant on the software used for display.
