Produktbeskrivelse
|

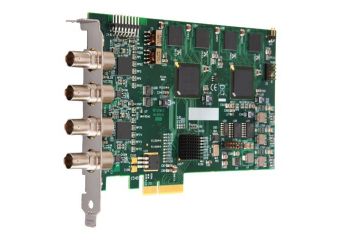

Datapath Vision SDI2 - videooptagelsesadapter - PCIe x4
|
Enhedstype
|
Videooptagelsesadapter
|
Grænsefladetype
|
PCIe x4
|
Dimensioner (B x D x H)
|
17 cm x 11 cm
|
Videoindgang
|
SDI (serial digital interface), HD-SDI, 3G-SDI
|
Video Modes
|
1080i, 1080p, 480i, 576i
|
Komprimeret video format
|
YUV 4:2:2
|
Hastighed ved digital videooptagelse
|
60 frames pr. sekund
|
Opløsning ved digital videooptagelse
|
2048 x 1536
|
OS nødvendig
|
Microsoft Windows Server 2003, Microsoft Windows Server 2008, Microsoft Windows Vista / XP / 7 / 8
|
Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
Enhedstype |
Videooptagelsesadapter |
Grænsefladetype |
PCIe x4 |
Dybde |
17 cm |
Højde |
11 cm |
Grænsefladetype |
SDI (serial digital interface), HD-SDI, 3G-SDI |
Video Modes |
1080i, 1080p, 480i, 576i |
Komprimeret video format |
YUV 4:2:2 |
Hastighed ved digital videooptagelse |
60 frames pr. sekund |
Opløsning ved digital videooptagelse |
2048 x 1536 |
Interface |
2 x skærm/video - SDI-output - BNC ¦ 2 x skærm/video - SDI-input - BNC |
Kompatible åbninger |
1 x PCI Express x4 |
Med software |
Drivers & Utilities |
OS nødvendig |
Microsoft Windows Server 2003, Microsoft Windows Server 2008, Microsoft Windows Vista / XP / 7 / 8 |
Service & Support |
Begrænset garanti - 3 år |
Min. driftstemperatur |
0 °C |
Maks. driftstemperatur |
35 °C |
Fugtighedsgrad ved brug |
5 - 90 % (ikke kondenserende) |
The VisionSDI2 is a dual channel PCI Express HD-SDI video capture card. The capture card supports SD-SDI, HD-SDI and 3G-SDI. The VisionSDI2 video capture card, a standalone PCI Express x4 plug in card, delivers extreme performance with high transfer bus bandwidth. This high performance makes the VisionSDI2 ideal for a wide range of applications.
