| Produktbeskrivelse
|

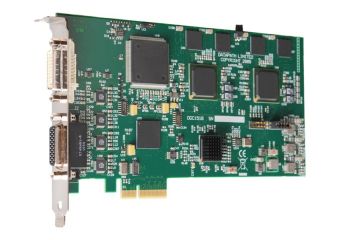

Datapath Vision SD4+1S - videooptagelsesadapter - PCIe x4
|
| Enhedstype
|
Videooptagelsesadapter
|
| Grænsefladetype
|
PCIe x4
|
| Dimensioner (B x D x H)
|
20.4 cm x 11 cm
|
| Videoindgang
|
DVI-Digital, DVI-Analog/Digital
|
| Video Modes
|
480p, 720p, 1080i, 1080p, 480i, 576i
|
| Analogvideosignal
|
RGB
|
| Opløsning ved digital videooptagelse
|
720 x 576
|
| Understøttelse af lydindgang
|
Ikke relevant
|
| OS nødvendig
|
Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008, Microsoft Windows Vista / XP / 7 / 8
|
| Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
| Enhedstype |
Videooptagelsesadapter |
| Grænsefladetype |
PCIe x4 |
| Dybde |
20.4 cm |
| Højde |
11 cm |
| Grænsefladetype |
DVI-Digital, DVI-Analog/Digital |
| Video Modes |
480p, 720p, 1080i, 1080p, 480i, 576i |
| Analogvideosignal |
RGB |
| Opløsning ved digital videooptagelse |
720 x 576 |
| Understøttelse af lydindgang |
Ikke relevant |
| Interface |
1 x skærm/video - DVI-Analog/Digital - 24+5 pin kombineret DVI ¦ 1 x skærm/video - DVI-Digital - 24+1 pin digital DVI |
| Kompatible åbninger |
1 x PCI Express x4 |
| OS nødvendig |
Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008, Microsoft Windows Vista / XP / 7 / 8 |
| Service & Support |
Begrænset garanti - 3 år |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
35 °C |
| Fugtighedsgrad ved brug |
5 - 90 % (ikke kondenserende) |
The VisionSD4+1S delivers extreme performance with 650 MB/s transfer bus bandwidth further improved to the 480 MB/s of the VisionSD4+1.
This video capture card has five complete video capture channels supporting a single channel for up to 1920 x 1080 DVI or 2048 x 1536 analog resolution, plus four SD analog capture channels.
The VisionSD4+1S captures the Analog/DVI data and triple buffers it into onboard storage. This data is then copied using DMA to the host system for display, storage or streaming. When a Datapath graphics card is used, the VisionSD4+1S transfers the data directly to the graphics card thereby increasing performance. The VisionSD4+1S capture card sends the relevant portions of each captured image to each display channel and instructs each channel to use its graphics engine to render the data. This fully utilises the hardware and dramatically increases performance.
When the RGB/DVI data is displayed on a non Datapath graphics card, the VisionSD4+1S sends the data to system memory or direct to the graphics card, dependant on the software used for display.
