Produktbeskrivelse
|

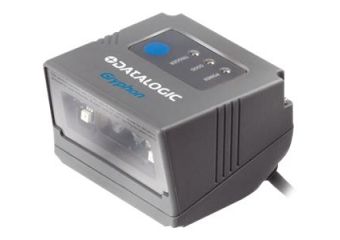

Datalogic Gryphon I GFS4400 2D - stregkodescanner
|
Type
|
Stregkodescanner - desktopmodel - USB - afkodet
|
Min. linjebredde
|
4 mil
|
Scanningskomponenttype
|
Synlig laserdiode
|
Forbindelsesteknologi
|
Kabling
|
Dimensioner (B x D x H)
|
5.8 cm x 5.7 cm x 3.9 cm
|
Vægt
|
170 g
|
Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
Type |
Stregkodescanner - desktopmodel |
Grænsefladetype |
USB |
Min. linjebredde |
4 mil |
Scanningskomponenttype |
Synlig laserdiode |
Lyskilde bølgelængde |
650 nm |
Skæv vridning (grader) |
40 |
Pitch (grader) |
40 |
Print Contrast Signal (PCS) |
25% |
Med afkodning |
EAN/JAN, GS1 DataBar, QR-kode, MaxiCode, Aztec-kode, UPC-A, UPC-E, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australske poststandard, Engelske poststandard, Kinesiske poststandard, Japanske poststandard, Kix (nederlandske) post, Koreanske post, MacroPDF417, Royal Mail, Micro QR kode, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code |
TTL-afkodning |
Afkodet |
Forbindelsesteknologi |
Kabling |
OK meddelelse |
Bipper |
Egenskaber |
Billedregistrering |
Interface |
1 x USB |
Overensstemmelsesstandarder |
IP54 |
Elektrisk strøm påkrævet |
180 mA (typisk) |
Bredde |
5.8 cm |
Dybde |
5.7 cm |
Højde |
3.9 cm |
Vægt |
170 g |
Service & Support |
Begrænset garanti - 3 år |
Min. driftstemperatur |
-20 °C |
Maks. driftstemperatur |
50 °C |
Fugtighedsgrad ved brug |
5 - 95 % (ikke-kondenserende) |
The Gryphon 4000 series represents the premium level of data collection devices from Datalogic ADC. Using advanced imaging technology, the Gryphon GFS4400 2D fixed mount bar code reader provides a complete self-contained solution for OEM use into self-service kiosks, price verifiers, ticket readers, document handling, and medical laboratory applications, as well as vending machines and other automated equipment.
Designed for easy integration, the Gryphon GFS4400 2D module provides a 'plug-and-play' solution for system designers. Constructed using high-impact resin to withstand repeated cleanings with solvents and disinfectant solutions, the sealed enclosure meets industrial standards against water and particulates to provide dependable scanning performance.
The GFS4400 2D OEM module features outstanding near-field reading, a wide angle field-of-view, high motion tolerance, snappy reading, and also offers excellent performance on decoding poor or damaged bar codes. As with all Gryphon readers, the GFS4400 reader offers good-read visual confirmation with Datalogic's patented 'Green Spot' technology.
User comfort is maximized with the GFS4400 OEM module's steady, deep red illumination light. Easier on the eyes than competitive products with flicker illumination, the highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads. The aimer's center cross provides a locator for targeted scanning in a multiple bar code environment.
