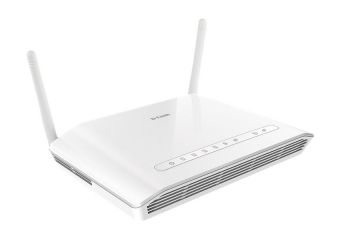

D-Link Wireless N300 DSL-2745 - trådløs router - DSL-modem - 802.11b/g/n - desktop
Produktbeskrivelse | D-Link Wireless N300 DSL-2745 - trådløs router - DSL-modem - 802.11b/g/n - desktop |
Enhedstype | Trådløs router - DSL-modem - 4-port switch (integreret) |
Pakningstype | Desktop |
Protokol for digital signaltransmission | ADSL, ADSL2, ADSL2+ |
Antal WAN porte | 1 |
Dataforbindelsesprotokol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Frekvensbånd | 2,4 GHz |
Dataoverførselshastighed | 300 Mbps |
Netværks/overføselsprotokol | TCP/IP, UDP/IP, ICMP/IP, PPPoE, PPPoA, AAL5, DDNS |
Routingprotokol | RIP-1, RIP-2, IGMP |
Protokol til fjernadministration | Telnet |
Egenskaber | NAT-understøtning, NAPT-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, Stateful Packet Inspection (SPI), DoS attack beskyttelse, IPv6 understøttet, firmware kan opgraderes, SNTP-understøttet, Quality of Service (QoS), virtuel server support, Wi-Fi Protected Setup (WPS), IPSec passthrough, DHCP server, DNS proxy, nulstillingsknap, 2T2R MIMO teknologi, DHCP videresendelse, DHCP klient, IGMP proxy, PPTP-gennemløb, L2TP-gennemløb, Internet Control Message Protocol (ICMP) |
Overensstemmelsesstandarder | IEEE 802.1p, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, UPnP |
Effekt | AC 120/230 V (50/60 Hz) |
Vægt | 113.4 g |
Produktdatablad |
|
Enhedstype | Trådløs router - 4-port switch (integreret) |
Pakningstype | Desktop |
Forbindelsesteknologi | Trådløs, kabling |
Dataforbindelsesprotokol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Frekvensbånd | 2,4 GHz |
Dataoverførselshastighed | 300 Mbps |
Netværks/overføselsprotokol | TCP/IP, UDP/IP, ICMP/IP, PPPoE, PPPoA, AAL5, DDNS |
Routingprotokol | RIP-1, RIP-2, IGMP |
Protokol til fjernadministration | Telnet |
Krypterings algoritme | WPA, WPA2, WEP |
Egenskaber | NAT-understøtning, NAPT-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, Stateful Packet Inspection (SPI), DoS attack beskyttelse, IPv6 understøttet, firmware kan opgraderes, SNTP-understøttet, Quality of Service (QoS), virtuel server support, Wi-Fi Protected Setup (WPS), IPSec passthrough, DHCP server, DNS proxy, nulstillingsknap, 2T2R MIMO teknologi, DHCP videresendelse, DHCP klient, IGMP proxy, PPTP-gennemløb, L2TP-gennemløb, Internet Control Message Protocol (ICMP) |
Overensstemmelsesstandarder | IEEE 802.1p, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, UPnP, ANATEL |
Statusindikatorer | Strøm, WLAN, LAN, ADSL, WPS, Internet |
Rammeformat | ANSI T1.413i2 |
Type | DSL-modem |
Protokol for digital signaltransmission | ADSL, ADSL2, ADSL2+ |
Protokoller og specifikationer | ITU G.992.2 (G.Lite), ITU G.994.1 (G.hs), ITU G.992.3 (G.DMT.bis), ITU G.992.4 (G.lite.bis), ITU G.992.1 (G.DMT) Annex A |
Maks. overførselshastighed | 24 Mbps |
Interface | WAN: 1 x ADSL2+ - RJ-11 ¦ LAN: 4 x 10Base-T/100Base-TX - RJ-45 |
Antal antenner | 2 |
Strømenhed | Ekstern strømforsyning |
Nødvendig spænding | AC 120/230 V (50/60 Hz) |
Vægt | 113.4 g |
Min. driftstemperatur | 0 °C |
Maks. driftstemperatur | 40 °C |
Fugtighedsgrad ved brug | 5 - 95 % (ikke-kondenserende) |
The DSL-2745 Wireless N300 ADSL2+ modem router is a versatile, high-performance router for a home or small office. With integrated ADSL2/2+, supporting download speeds up to 24 Mbps, firewall protection, Quality of Service (QoS), 802.11n wireless LAN, and 4 Ethernet switch ports, the DSL-2745 provides all the functions that a user needs to establish a secure and high-speed link to the Internet. Featuring Wireless N300 technology, the DSL-2745 supports wireless speeds of up to 300 Mbps1, 4 times faster than 802.11g. Featuring 2 x 2 MIMO antenna configuration, wireless devices can take advantage of expanded wireless coverage. The Wireless N300 ADSL2+ modem router offers Quality of Service (QoS), which allows priority queues to enable a group of home or office users to experience the benefit of a smooth network connection without worrying about traffic congestion. This router's security features prevent unauthorized access to your private network from wireless devices or from the Internet. These features include firewall security, such as Stateful Packet Inspection (SPI) and hacker attack logging. Additionally, it supports WPA/WPA2 and WEP for flexible security and data encryption while a WPS button provides an easy way to establish a secure wireless connection.
