Produktbeskrivelse
|
ComNet FXA2C1M1B - audioforlængerkabel
|
Enhedstype
|
Audioforlængerkabel
|
Model
|
Ekstern - 1U
|
Optisk bølgelængde
|
1550 nm / 1310 nm
|
Maks. overføringsafstand
|
3 km
|
Effekt
|
AC 120/230 V
|
Dimensioner (B x D x H)
|
15.5 cm x 13.5 cm x 2.8 cm
|
Producentgaranti
|
Begrænset livtidsgaranti
|
Produktdatablad |
|
Enhedstype |
Audioforlængerkabel |
Model |
Ekstern - 1U |
Forbindelsesteknologi |
Kabling |
Optisk bølgelængde |
1550 nm / 1310 nm |
Maks. overføringsafstand |
3 km |
Statusindikatorer |
Link/aktivitet, lyd |
Interface |
1 x audio (input) - terminalblok ¦ 1 x netværk - ST multi-mode ¦ 1 x audio (output) - terminalblok ¦ 1 x kontaktindelukke (input) - terminalblok |
MTBF (forventet tid mellem fejl) |
100,000 timer |
Overensstemmelsesstandarder |
FCC Part 15, RoHS, cULus |
Strømenhed |
Ekstern strømforsyning |
Nødvendig spænding |
AC 120/230 V (50/60 Hz) |
Strømforbrug ved drift |
2 Watt |
Bredde |
15.5 cm |
Dybde |
13.5 cm |
Højde |
2.8 cm |
Service & Support |
Begrænset garanti - livstid |
Min. driftstemperatur |
-40 °C |
Maks. driftstemperatur |
75 °C |
Fugtighedsgrad ved brug |
5 - 95 % (ikke-kondenserende) |

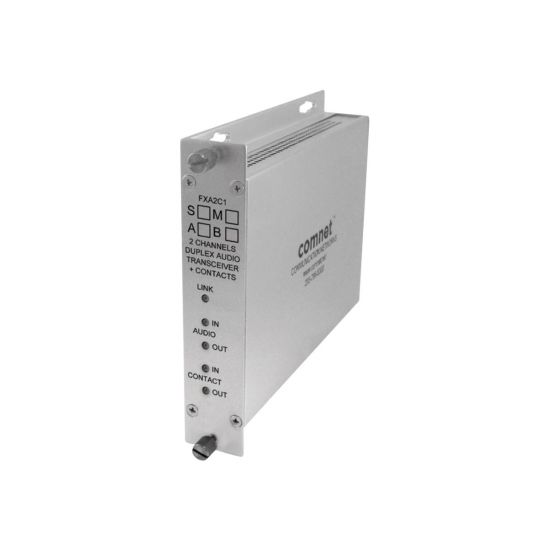

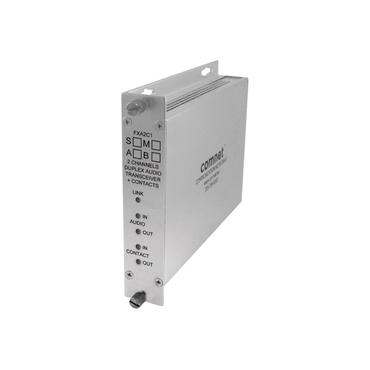

The ComNet FXA2C1 audio multiplexer provides the transmission of two audio signals and one contact closure over one multimode or single mode optical fiber. The modules use 24-bit 96kHz sample rate digital encoding for superior transmission of balanced line-level audio. Plugand-play design ensures ease of installation and no electrical or optical adjustments are required. Bi-color LED indicators confirm operational status.
