| Produktbeskrivelse
|

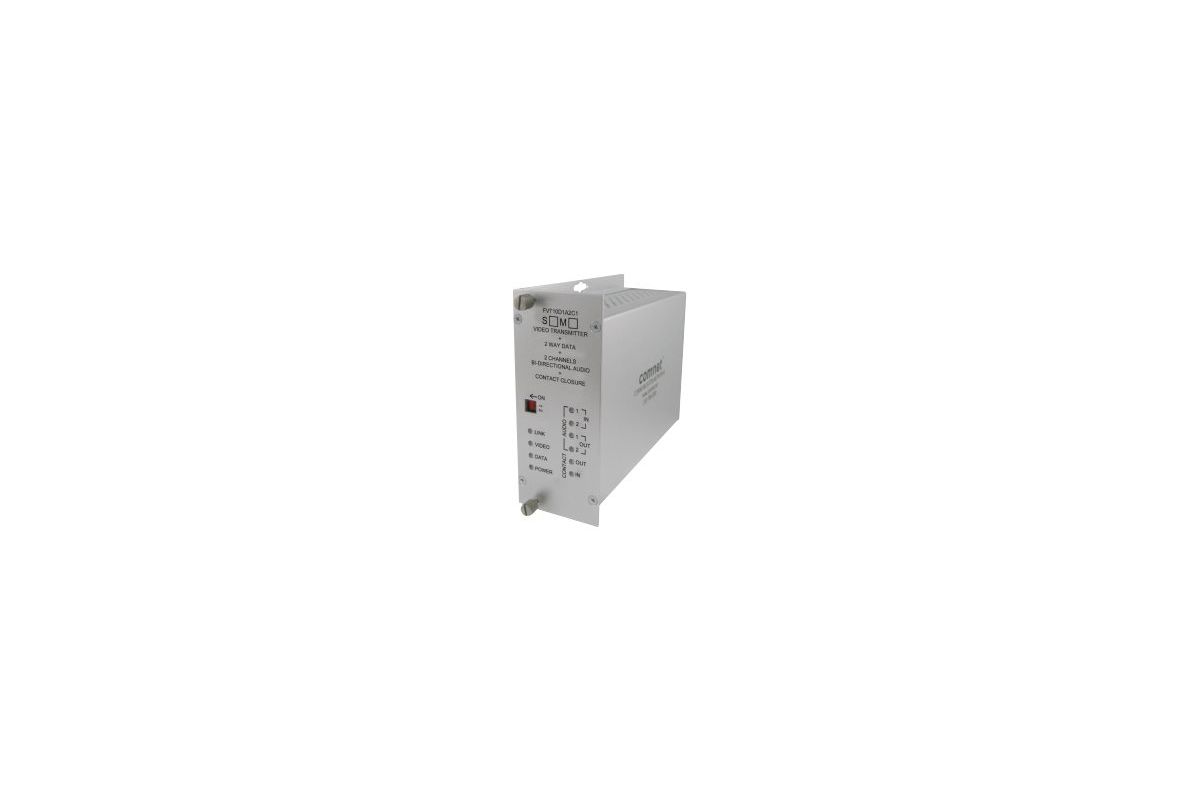

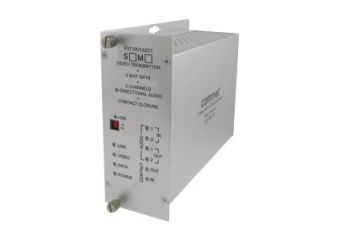

ComNet FVT10D1A2C1S1 - video/audio/serie forlænger
|
| Enhedstype
|
Video/audio/serie forlænger
|
| Model
|
Ekstern - 2U
|
| Optisk bølgelængde
|
1310 nm / 1550 nm
|
| Maks. overføringsafstand
|
69 km
|
| Effekt
|
AC 120/230 V
|
| Dimensioner (B x D x H)
|
15.5 cm x 13.5 cm x 5.6 cm
|
| Producentgaranti
|
Begrænset livtidsgaranti
|
Produktdatablad |
|
| Enhedstype |
Video/audio/serie forlænger |
| Model |
Ekstern - 2U |
| Indbygget udstyr |
LED-panel |
| Forbindelsesteknologi |
Kabling |
| Optisk bølgelængde |
1310 nm / 1550 nm |
| Maks. overføringsafstand |
69 km |
| Statusindikatorer |
Strøm, send, modtag, link/aktivitet, lyd, video |
| Interface |
1 x RS-232/422/485 ¦ 1 x netværk - ST single-mode ¦ 2 x audio (input) ¦ 2 x audio (output) ¦ 1 x video - BNC |
| MTBF (forventet tid mellem fejl) |
100,000 timer |
| Overensstemmelsesstandarder |
FCC, RoHS, cULus |
| Strømenhed |
Ekstern strømforsyning |
| Nødvendig spænding |
AC 120/230 V (50/60 Hz) |
| Strømforbrug ved drift |
4 Watt |
| Bredde |
15.5 cm |
| Dybde |
13.5 cm |
| Højde |
5.6 cm |
| Service & Support |
Begrænset garanti - livstid |
| Min. driftstemperatur |
-40 °C |
| Maks. driftstemperatur |
75 °C |
| Fugtighedsgrad ved brug |
0 - 95% (ikke-kondenserende) |
The ComNet FVT/FVR10D1A2C1 video transmitter/data transceiver and video receiver/data transceiver series utilize 10-bit digital encoding and decoding for high-quality video transmission that meets the requirements of EIA RS-250C for short-haul video transmission. These environmentally hardened units provide transmission of one independent video channel and one bi-directional data channel over one optical fiber and are ideal for use in unconditioned roadside or out-of-plant installations. They also provide transmission of two bi-directional audio signals and one bi-directional contact closure over the same fiber. The modules use 24-bit 96kHz sample rate digital encoding for superior transmission of balanced line-level audio. It also supports "up-the-coax" data transmission from all major manufacturers.
