| Produktbeskrivelse
|

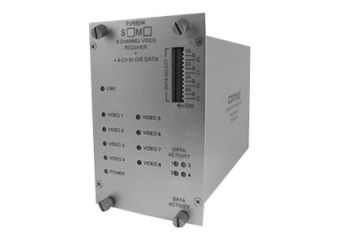

ComNet FVR8014M1 - video/seriel forlænger
|
| Enhedstype
|
Video/seriel forlænger
|
| Model
|
Ekstern
|
| Optisk bølgelængde
|
1550 nm / 1310 nm
|
| Maks. overføringsafstand
|
2 km
|
| Effekt
|
AC 120/230 V
|
| Dimensioner (B x D x H)
|
13.5 cm x 15.5 cm x 8.3 cm
|
| Producentgaranti
|
Begrænset livtidsgaranti
|
Produktdatablad |
|
| Enhedstype |
Video/seriel forlænger |
| Model |
Ekstern |
| Forbindelsesteknologi |
Kabling |
| Optisk bølgelængde |
1550 nm / 1310 nm |
| Liniekodningsformat |
NRZ, NRZI, Manchester |
| Maks. overføringsafstand |
2 km |
| Egenskaber |
Komplet duplex ydeevne |
| Interface |
4 x RS-232/422/485 (output) - RJ-45 ¦ 8 x video (output) - BNC hun ¦ 1 x netværk (input) - ST multi-mode |
| Rackmonteringspakke |
Valgfri |
| MTBF (forventet tid mellem fejl) |
100,000 timer |
| Overensstemmelsesstandarder |
FCC, RoHS, cULus |
| Strømenhed |
Ekstern strømforsyning |
| Nødvendig spænding |
AC 120/230 V (50/60 Hz) |
| Bredde |
13.5 cm |
| Dybde |
15.5 cm |
| Højde |
8.3 cm |
| Service & Support |
Begrænset garanti - livstid |
| Min. driftstemperatur |
-40 °C |
| Maks. driftstemperatur |
75 °C |
| Fugtighedsgrad ved brug |
0 - 95% (ikke-kondenserende) |
The ComNet FVR8014(M)(S)1 series transmits eight channels of 10-Bit Digital Video along with four channels of bi-directional data over one single mode or multimode optical fiber. The video quality exceeds RS-250C for medium-haul video transmission. This equipment is environmentally hardened and suitable for use in unconditioned roadside or out-of plant installations. The FVR8014 is compatible with NTSC, PAL and SECAM video transmission protocols and supports bi-directional RS232, 422 and RS485 (2 & 4 Wire) data. Plug-and-Play design ensures ease of installation and no electrical or optical adjustments are required. Bi-Color LED indicators are provided to indicate the status of the system, video and data.
