Produktbeskrivelse
|

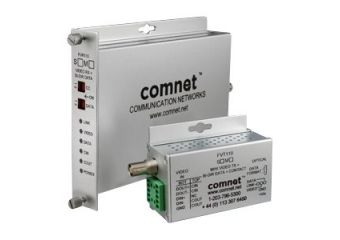

ComNet FVR110M1 - video/seriel/kontaktindelukke-forlænger
|
Enhedstype
|
Video/seriel/kontaktindelukke-forlænger
|
Model
|
Rackmonterbar - 1U
|
Optisk bølgelængde
|
1310 nm / 1550 nm
|
Maks. overføringsafstand
|
3 km
|
Effekt
|
AC 90 - 264 V
|
Dimensioner (B x D x H)
|
13.5 cm x 15.5 cm x 2.8 cm
|
Vægt
|
900 g
|
Producentgaranti
|
Begrænset livtidsgaranti
|
Produktdatablad |
|
Enhedstype |
Video/seriel/kontaktindelukke-forlænger |
Model |
Rackmonterbar - 1U |
Indbygget udstyr |
LED-panel |
Forbindelsesteknologi |
Kabling |
Optisk bølgelængde |
1310 nm / 1550 nm |
Liniekodningsformat |
NRZ, NRZI, Manchester |
Maks. overføringsafstand |
3 km |
Statusindikatorer |
Portstatus, strøm, link/aktivitet |
Egenskaber |
Komplet duplex ydeevne |
Interface |
1 x RS-232/422/485 - terminalblok ¦ 1 x video - BNC ¦ 1 x netværk - ST multi-mode ¦ 1 x kontaktindelukke - terminalblok |
MTBF (forventet tid mellem fejl) |
100,000 timer |
Overensstemmelsesstandarder |
FCC Part 15, RoHS, WEEE, cULus |
Strømenhed |
Intern strømforsyning |
Nødvendig spænding |
AC 90 - 264 V (50/60 Hz) |
Bredde |
13.5 cm |
Dybde |
15.5 cm |
Højde |
2.8 cm |
Vægt |
900 g |
Service & Support |
Begrænset garanti - livstid |
Min. driftstemperatur |
-40 °C |
Maks. driftstemperatur |
75 °C |
Fugtighedsgrad ved brug |
0 - 95% (ikke-kondenserende) |
The ComNet FVR110 series is a video receiver that supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digitally encoded video and bi-directional data over one multimode or single mode optical fiber. The module is universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces and most data protocols. It also supports "up-the-coax" data transmission from all major manufacturers, utilizing time-base correction these units can achieve distances of 48 km. The FVR110 supports Panasonic Proteus, Pelco Coaxitron and Bosch Bilinx Up-the-Coax systems.
