| Produktbeskrivelse
|

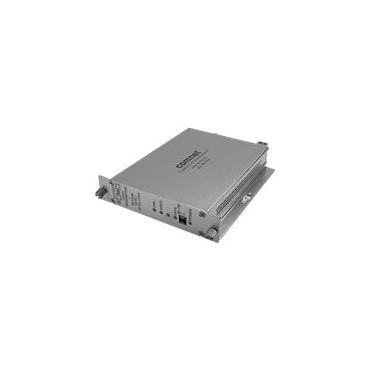

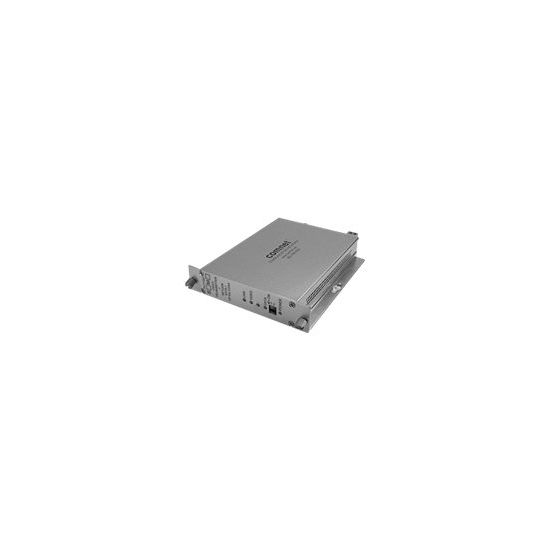

ComNet FVR1021M1 Video Receiver - video/seriel forlænger
|
| Enhedstype
|
Video/seriel forlænger (receiver)
|
| Model
|
Rackmonterbar - 1U
|
| Optisk bølgelængde
|
1310 nm / 1550 nm
|
| Maks. overføringsafstand
|
3 km
|
| Effekt
|
AC 120/230 V
|
| Dimensioner (B x D x H)
|
13.5 cm x 15.5 cm x 2.8 cm
|
| Producentgaranti
|
Begrænset livtidsgaranti
|
Produktdatablad |
|
| Enhedstype |
Video/seriel forlænger (receiver) |
| Model |
Rackmonterbar - 1U |
| Forbindelsesteknologi |
Kabling |
| Optisk bølgelængde |
1310 nm / 1550 nm |
| Liniekodningsformat |
NRZ, NRZI, Manchester |
| Maks. overføringsafstand |
3 km |
| Egenskaber |
Komplet duplex ydeevne |
| Interface |
1 x RS-232/422 - terminalblok ¦ 1 x video - BNC hun ¦ 1 x netværk - ST multi-mode |
| MTBF (forventet tid mellem fejl) |
100,000 timer |
| Overensstemmelsesstandarder |
FCC, RoHS, cULus |
| Strømenhed |
Ekstern strømforsyning |
| Nødvendig spænding |
AC 120/230 V (50/60 Hz) |
| Bredde |
13.5 cm |
| Dybde |
15.5 cm |
| Højde |
2.8 cm |
| Service & Support |
Begrænset garanti - livstid |
| Min. driftstemperatur |
-40 °C |
| Maks. driftstemperatur |
75 °C |
| Fugtighedsgrad ved brug |
0 - 95% (ikke-kondenserende) |
The ComNet FVR1021 series video receiver and data receiver supports the simultaneous transmission of short-haul quality 10-bit Digitally Encoded video and return data over one multimode mode optical fiber. This module is universally compatible with major CCTV camera manufacturers and supports RS-232 and RS-422 data interfaces. The FVT/FVR1021 allows the user to set the data through a switch on the unit. Plug-and-Play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status.
