| Produktbeskrivelse
|
ComNet CopperLine CLFE8EOC - netværksforlænger - 10Mb LAN, 100Mb LAN
|
| Enhedstype
|
Netværksforlænger
|
| Antal porte
|
8
|
| Model
|
Rackmonterbar - 1U
|
| Kabeltype
|
10Base-T, 100Base-TX
|
| Dataoverførselshastighed
|
100 Mbps
|
| Dataforbindelsesprotokol
|
10Mb LAN, 100Mb LAN
|
| Maks. overføringsafstand
|
1524 m
|
| Power Over Ethernet (PoE)
|
PoE
|
| Dimensioner (B x D x H)
|
48.26 cm x 15.44 cm x 4.37 cm
|
Produktdatablad |
|
| Enhedstype |
Netværksforlænger |
| Model |
Rackmonterbar - 1U |
| Antal porte |
8 |
| Forbindelsesteknologi |
Kabling |
| Kabeltype |
10Base-T, 100Base-TX |
| Dataforbindelsesprotokol |
10Mb LAN, 100Mb LAN |
| Dataoverførselshastighed |
100 Mbps |
| Maks. overføringsafstand |
1524 m |
| Statusindikatorer |
Strøm, link/aktivitet |
| Egenskaber |
Komplet duplex ydeevne, Jumbo Frames support |
| Overensstemmelsesstandarder |
IEEE 802.3, IEEE 802.3af |
| Interface |
8 x Ethernet 10Base-T/100Base-TX - RJ-45 hun ¦ 8 x netværk - BNC |
| Power Over Ethernet (PoE) |
PoE |
| Strømenhed |
Ekstern strømforsyning |
| Strømforbrug ved drift |
10 Watt |
| Bredde |
48.26 cm |
| Dybde |
15.44 cm |
| Højde |
4.37 cm |

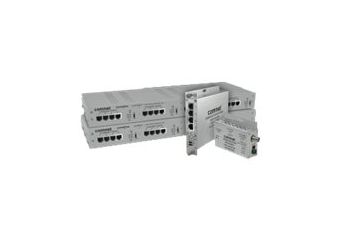

The ComNet CopperLine Ethernet over copper line supports up to sixteen channels of 10/100Mbps Ethernet with Pass-through PoE over twisted pair cable (CAT-5, UTP), or over coaxial cable. The single channel units may be powered by a PoE switch or the included power supply. Four, eight, and sixteen channel units operate from local power. These units provide the ultimate flexibility for extending a powered device (PD) over long distance copper. DIP switches are provided for userselection of local or remote, 10 or 100Mbps, and 1 pair or 4 pair (UTP) settings. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status.
