COMNET CNGE2FE8MSPOE+ - switch - 10 porte - Administreret
| Produktbeskrivelse | COMNET CNGE2FE8MSPOE+ - switch - 10 porte - Administreret |
| Enhedstype | Switch - 10 porte - Administreret |
| Undertype | Gigabit Ethernet |
| Porte | 8 x 10/100 (PoE+) + 2 x kombi Gigabit Ethernet/Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 240 W |
| Præstation | Båndbredde: 5,6 Gbps |
| Kapacitet | Virtuelle grænseflader (VLANs): 4096 ¦ IGMP-grupper: 1024 |
| MAC adresse table størrelse | 8192 indtastninger |
| Routingprotokol | IGMPv2, IGMP |
| Protokol til fjernadministration | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, CLI |
| Egenskaber | Auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, DiffServ understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), RADIUS support, DHCP server, LLDP support, DHCP klient, e-mail meddelelse, Multicast VLAN Registration (MVR), Multicast filtreringsfunktion, mærket VLAN, Generic VLAN Registration Protocol (GVRP), Type of Service (ToS) |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Effekt | DC 48 - 57 V |
| Overskudsspænding | Ja |
| Dimensioner (B x D x H) | 7.2 cm x 10.5 cm x 15.2 cm |
| Vægt | 820 g |
| Producentgaranti | Begrænset livtidsgaranti |
Produktdatablad |
|
| Enhedstype | Switch - 10 porte - Administreret |
| Pakningstype | DIN monterbar på skinne, væg-monterbar |
| Undertype | Gigabit Ethernet |
| Porte | 8 x 10/100 (PoE+) + 2 x kombi Gigabit Ethernet/Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 240 W |
| Præstation | Båndbredde: 5,6 Gbps |
| Kapacitet | Virtuelle grænseflader (VLANs): 4096 ¦ IGMP-grupper: 1024 |
| MAC adresse table størrelse | 8192 indtastninger |
| Routingprotokol | IGMPv2, IGMP |
| Protokol til fjernadministration | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, CLI |
| Autentificeringsmetode | RADIUS, TACACS |
| Egenskaber | Auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, DiffServ understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), RADIUS support, DHCP server, LLDP support, DHCP klient, e-mail meddelelse, Multicast VLAN Registration (MVR), Multicast filtreringsfunktion, mærket VLAN, Generic VLAN Registration Protocol (GVRP), Type of Service (ToS) |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Statusindikatorer | Portstatus, strøm |
| Interface | 8 x 100Base-TX RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-T RJ-45 ¦ 2 x 1000Base-SX SFP ¦ 1 x seriel (konsol) RJ-45 |
| Strømenhed | Intern strømforsyning |
| Overskudsspænding | Ja |
| Nødvendig spænding | DC 48 - 57 V |
| Strømforbrug ved drift | 9 Watt |
| Medfølgende ledninger | 1 x konsolkabel |
| MTBF (forventet tid mellem fejl) | 100,000 timer |
| Overensstemmelsesstandarder | EN 61000-4-2, EN 61000-4-6, FCC Part 15, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, EN 60950-1, WEEE, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, CISPR, cULus, EN 55022 Class A |
| Bredde | 7.2 cm |
| Dybde | 10.5 cm |
| Højde | 15.2 cm |
| Vægt | 820 g |
| Service & Support | Begrænset garanti - livstid |
| Min. driftstemperatur | -40 °C |
| Maks. driftstemperatur | 75 °C |
| Fugtighedsgrad ved brug | 5 - 95 % (ikke-kondenserende) |
| Min. lagertemperatur | -40 °C |
| Maks. Opbevaringstemperatur | 85 °C |

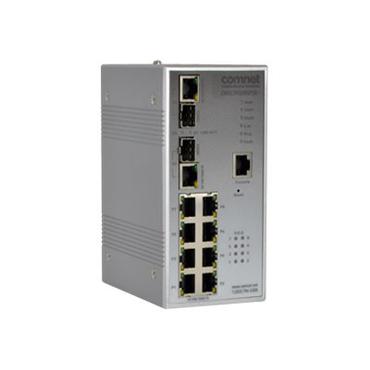

The ComNet CNGE2FE8MSPOE+ is a hardened Managed Ethernet Switch. It provides IEEE 802.3at (30 W) PoE+ to eight 10/100BASE-T(X) and has two-gigabit combination SFP or RJ-45 ports. Up to 240 watts of PoE or PoE+ power is available for distribution across all 8 TX ports. All SFP ports utilize ComNet SFP modules for fiber and connector type and distance. The CNGE2FE8MSPOE+ is a redundant switch offering multiple Ethernet redundancy protocols, C-Ring (recovery time <10ms over 250 units of connection), ComRing, and MSTP/RSTP/STP (IEEE 802.1 s/w/D). This redundancy feature protects your applications from network interruptions or temporary malfunctions by redirecting transmission within the network. Network management is supported by eConsole, a powerful, easy-to-use Windows-based utility, as well as Web-based telnet, and Console (CLI) configurations. This environmentally hardened switch is designed for direct deployment in difficult out-of-plant or roadside operating environments.
