| Produktbeskrivelse
|

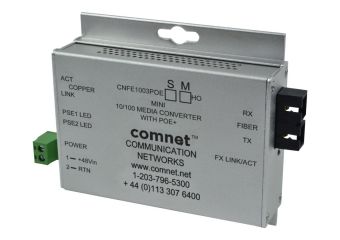

ComNet CNFE1002APOEMHO/M - fibermedieomformer - 10Mb LAN, 100Mb LAN
|
| Enhedstype
|
Fibermedieomformer - RJ-45 / ST multimodus
|
| Model
|
Ekstern
|
| Kabeltype
|
10Base-T, 100Base-FX, 100Base-TX
|
| Dataoverførselshastighed
|
100 Mbps
|
| Dataforbindelsesprotokol
|
10Mb LAN, 100Mb LAN
|
| Power Over Ethernet (PoE)
|
PoE+
|
| Effekt
|
DC 48 V
|
| Dimensioner (B x D x H)
|
9.5 cm x 10.4 cm x 2.7 cm
|
| Vægt
|
500 g
|
| Producentgaranti
|
Begrænset livtidsgaranti
|
Produktdatablad |
|
| Enhedstype |
Fibermedieomformer |
| Model |
Ekstern |
| Forbindelsesteknologi |
Kabling |
| Kabeltype |
10Base-T, 100Base-FX, 100Base-TX |
| Dataforbindelsesprotokol |
10Mb LAN, 100Mb LAN |
| Dataoverførselshastighed |
100 Mbps |
| Statusindikatorer |
Strøm, PoE, link/aktivitet |
| Egenskaber |
Auto-negotiation, halv dupleksmodus, fuld dupleksmodus |
| Overensstemmelsesstandarder |
IEEE 802.3, IEEE 802.3at |
| Interface |
1 x Ethernet 10Base-T/100Base-TX - RJ-45 hun ¦ 1 x Ethernet 100Base-FX - ST multi-mode hun |
| MTBF (forventet tid mellem fejl) |
100,000 timer |
| Overensstemmelsesstandarder |
Plug and Play, RoHS, cULus |
| Power Over Ethernet (PoE) |
PoE+ |
| Nødvendig spænding |
DC 48 V |
| Bredde |
9.5 cm |
| Dybde |
10.4 cm |
| Højde |
2.7 cm |
| Vægt |
500 g |
| Service & Support |
Begrænset garanti - livstid |
| Min. driftstemperatur |
-40 °C |
| Maks. driftstemperatur |
75 °C |
| Fugtighedsgrad ved brug |
0 - 95% (ikke-kondenserende) |
The ComNet CNFE100(X)POE/M series 2-port media converters provide fullduplex fiber optic transmission of a single channel of 10/100 Mbps Ethernet data (10/100 BASE-TX) through multimode or single mode optical fiber. They provide full compliance with IEEE 802.3at as Power Sourcing Equipment (PSE), with a maximum power of 30 watts in Mode A or Mode B, making them ideal for those applications where the remote equipment draws significant power. A higher output 60 watt model is available. Mode A and mode B are selected by the media converter automatically. Plug-and-Play design ensures ease of operation, and no optical adjustments are ever required.
