Cisco Supervisor Engine 6L-E processorkontrol

Producent Cisco
Produkt nr. WS-X45-SUP6L-E=
EAN 0882658259111
Varenummer F404439
83.175,- DKK
Lagerstatus:
  0 stk. København
  0 stk. Aarhus
  0 stk. Fjernlager
Forventet levering ved bestilling: 31/07/2017
Mere info

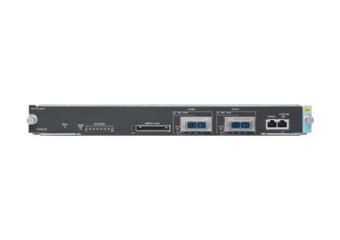

Produktbeskrivelse Cisco Supervisor Engine 6L-E - processorkontrol
Enhedstype Processorkontrol
Model Indstiksmodul
RAM 512 MB (installeret) / 1 GB (maks.)
Dataforbindelsesprotokol 10 Gigabit Ethernet
Præstation Omkoblingskapacitet: 280 Gbps ¦ IPv4 routing: 225 Mpps ¦ IPv6 routing: 110 Mpps
Kapacitet QoS hardware indgange: 32000 ¦ Sikkerheds service indgang: 32000 ¦ Hardware forwarding indgange: 57000 ¦ IPv4 router: 57000 ¦ IPv6 router: 30000 ¦ MAC adresser: 55000 ¦ Virtuelle grænseflader (VLANs): 4096
Producentgaranti Begrænset livtidsgaranti
Designet for Catalyst 4503-E, 4506-E, 4507R-E, 4510R-E
Enhedstype Processorkontrol
RAM 512 MB (1 GB maks.) SDRAM
Model Indstiksmodul
Forbindelsesteknologi Kabling
Dataforbindelsesprotokol 10 Gigabit Ethernet
Netværks/overføselsprotokol NTP, ICMP/IP
Routingprotokol RIP, RIP-2, EIGRP, statisk IP routing
Protokol til fjernadministration SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SSH, SSH-2
Præstation Omkoblingskapacitet: 280 Gbps ¦ IPv4 routing: 225 Mpps ¦ IPv6 routing: 110 Mpps
Kapacitet QoS hardware indgange: 32000 ¦ Sikkerheds service indgang: 32000 ¦ Hardware forwarding indgange: 57000 ¦ IPv4 router: 57000 ¦ IPv6 router: 30000 ¦ MAC adresser: 55000 ¦ Virtuelle grænseflader (VLANs): 4096
Statusindikatorer Tilslutningsaktivitet, båndbreddebenyttelse i %, tilslutning OK, status
Egenskaber Auto-negotiation, VLAN-understøttet, IGMP snooping, Broadcast Storm Control, IPv6 understøttet, Multicast Storm Control, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Access Control List (ACL) support, Quality of Service (QoS), Multicast Suppression, Jumbo Frames support, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), MDL snooping
Autentificeringsmetode Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Overensstemmelsesstandarder IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP)
Understøttede flashhukommelseskort CompactFlash Card
Ekspansionsåbninger 2 (total) / 0 (fri) x X2 ¦ 4 (total) / 4 (fri) x SFP (mini-GBIC)
Interface 1 x administration - RJ-45 ¦ 1 x 1000Base-T (administration) - RJ-45
Kompatible åbninger 1 x Ekspansionsholder
Overensstemmelsesstandarder FCC Klasse A certificeret, CISPR 22 Klasse A, EN 60950, EN 61000-3-2, EN55022, VCCI Klasse A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Klasse A, UL 60950, CSA 22.2 No. 60950, ACA TS001, AS/NZS 3260, ICES-003 Klasse A, FCC CFR47 Part 15
Service & Support Begrænset garanti - livstid
Min. driftstemperatur 0 °C
Maks. driftstemperatur 40 °C
Fugtighedsgrad ved brug 10 - 90%
Designet for Cisco Catalyst 4503-E, 4506-E, 4507R-E, 4510R-E

The Supervisor Engine 6L-E delivers 24 Gbps per slot of switching capacity when deployed with the E-Series line cards in a Cisco Catalyst 4500 E-series chassis. You can mix and match classic line cards and E-Series line cards within a Cisco Catalyst 4500 E-series chassis with no performance degradation. When you deploy the Cisco Catalyst Supervisor Engine 6L-E with classic line cards, all of the features except the 24-Gbps per-slot switching capacity are inherited.
The Cisco Catalyst Supervisor Engine 6L-E also provides flexibility and an easy migration path to 10 Gigabit Ethernet uplinks with dual-purpose X2 slots that can accommodate wire-speed 10 Gigabit Ethernet optics or Cisco TwinGig Converter Modules, enabling Gigabit Ethernet SFP optics.
The Cisco TwinGig converter module, which ships standard with the Supervisor Engine 6L-E, converts a single 10 Gigabit Ethernet X2 interface into two Gigabit Ethernet port slots that can be populated with appropriate SFP optics, providing a total of 4 Gigabit Ethernet uplinks if used in both X2 interface slots. With the flexibility offered by the Cisco TwinGig converter module, you can initially use the gigabit uplinks, and then, as your business demands change, you can simply remove the Cisco TwinGig converter module and insert 10 Gigabit Ethernet X2 optics to provide full line-rate 10 Gigabit Ethernet uplinks. The ability to support both Gigabit Ethernet uplinks and 10 Gigabit Ethernet uplinks on a single supervisor engine further demonstrates the flexibility and the investment protection of the Cisco Catalyst 4500 series.
Power consumption on the Supervisor Engine 6L-E is optimized, and when combined with Cisco Catalyst 4500 line cards, the system supports Power over Ethernet (PoE), Cisco enhanced PoE, and ready for PoEP with support for 30W/port.
The capabilities and investment protection provided by the Supervisor Engine 6L-E facilitate not only adequate scalability for today's network access requirements but also future-proofing by providing significant software functionalities for future deployments.
