Produktbeskrivelse
|
Cisco Small Business Pro SPA8000 8-port IP Telephony Gateway - VoIP-telefonadapter
|
Enhedstype
|
VoIP-telefonadapter
|
Formfaktor
|
Ekstern
|
Dataforbindelsesprotokol
|
Ethernet, Fast Ethernet
|
VoIP-protokoller
|
SIP v2
|
Grænseflader til telefoni
|
8 telefoner (FXS)
|
Effekt
|
AC 120/230 V (50/60 Hz)
|
Dimensioner (B x D x H)
|
22 cm x 17 cm x 3.3 cm
|
Vægt
|
1.3 kg
|
Produktdatablad |
|
Enhedstype |
VoIP-telefonadapter |
Bredde |
22 cm |
Dybde |
17 cm |
Højde |
3.3 cm |
Vægt |
1.3 kg |
Model |
Ekstern |
Forbindelsesteknologi |
Kabling |
Dataforbindelsesprotokol |
Ethernet, Fast Ethernet |
Netværks/overføselsprotokol |
TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE |
Protokol til fjernadministration |
HTTP, HTTPS |
Egenskaber |
DHCP-understøttelse, NAT-understøtning, understøttet af ARP, Syslog understøttet, DiffServ understøttet, VPN passthrough, SNTP-understøttet, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS) |
Krypterings algoritme |
MD5, TLS, PEAP, TTLS, 256-bit AES |
Autentificeringsmetode |
Extensible Authentication Protocol (EAP) |
Overensstemmelsesstandarder |
IEEE 802.3, IEEE 802.1p |
VoIP-protokoller |
SIP v2 |
Voice Codecs |
G.711, G.723.1, G.729a, G.726, T.38 |
Grænseflader til telefoni |
8 telefoner (FXS) |
IP-telefonifunktioner |
Comfort noise generation (CNG), echo cancellation (G.168) (eliminerer ekko), viderestilling af opkald, Id af kaldende nummer, banke på, echo cancellation (G.165) (eliminerer ekko), overførsel af samtale |
Interface |
8 x modem - RJ-11 ¦ 1 x telefonlinje ¦ 1 x 100Base-TX - RJ-45 (WAN) |
Medfølgende ledninger |
1 x netværkskabel |
Overensstemmelsesstandarder |
UL, C-Tick, ICES-003, FCC Part 15 B, RoHS |
Strømenhed |
Ekstern strømforsyning |
Nødvendig spænding |
AC 120/230 V (50/60 Hz) |
Min. driftstemperatur |
0 °C |
Maks. driftstemperatur |
45 °C |
Fugtighedsgrad ved brug |
10 - 90% |

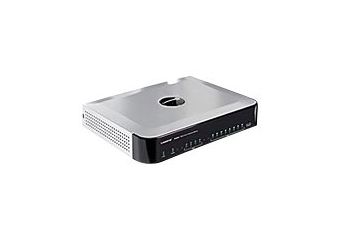

The Cisco SPA8000 8-Port IP Telephony Gateway is a full-featured analog telephone adapter (ATA) for small businesses, providing enhanced communication services via a broadband connection to the Internet.
The Cisco SPA8000 features eight RJ-11 FXS ports to connect analog telephones to IP-based data networks and includes a single multiport RJ-21 50-pin connector, offering an alternative connection choice when deploying the telephony gateway in varied environments. The device also has one 10/100BASE-T RJ-45 Ethernet interface to connect to either a router or a multilayer switch.
Solid in design, the Cisco SPA8000 is an affordable solution that is ideally suited for use in business and consumer voice over IP (VoIP) service offerings, including call centers and multidwelling environments. Customers can protect and extend their investment by continuing to use their existing analog telephones and teleconferencing equipment.
Installed by the end user and remotely provisioned, configured, and maintained by the service provider, each Cisco SPA8000 converts voice traffic into data packets for transmission over an IP network and uses common standards for voice and data networking for reliable voice and fax operation.
