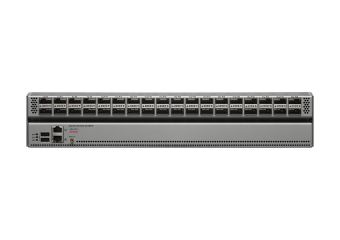

Cisco Nexus 9336PQ ACI Spine - switch - 36 porte - Administreret - monterbar på stativ
Produktbeskrivelse | Cisco Nexus 9336PQ ACI Spine - switch - 36 porte - Administreret - monterbar på stativ |
Enhedstype | Switch - 36 porte - L3 - Administreret |
Pakningstype | Monterbar på stativ 2U |
Undertype | 40 Gigabit Ethernet |
Porte | 36 x 40 Gigabit QSFP+ |
Præstation | Båndbredde: 1,44 Tbps |
Kapacitet | Længste præfix match (LPM) indtastninger (IPv4): 16000 ¦ Værttabelsindtastninger (IPv4): 88000 ¦ MAC adresser: 160000 ¦ IPv4 ruter (Multicast): 32000 ¦ Virtuelle grænseflader (VLANs): 4096 ¦ Equal-Cost Multipathing (ECMP) metoder: 64 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Per-VLAN Spanning Tree Plus-instanser: 507 ¦ Virtual Routing and Forwarding (VRF) optegnelser: 1000 ¦ IGMP spionage indgivelser: 32000 |
Jumborammesupport | Ja |
Routingprotokol | IS-IS, BGP, EIGRP, HSRP, VRRP, OSPFv2, PIM-SM, OSPFv3, MSDP, statisk IPv4 routing, ECMP, Bidirectional Forwarding Detection (BFD), VRRPv3 |
Protokol til fjernadministration | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2 |
Egenskaber | Datatransport, modulærdesign, aktivitet, VLAN-understøttet, IGMP snooping, Syslog understøttet, Vægtet rundsendelses kø (WRR), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, RDMA support, Virtual Route Forwarding-Lite (VRF-Lite), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), LLDP support, DHCP videresendelse, Link Aggregation Control Protocol (LACP), Virtual Routing and Forwarding (VRF), Class of Service (CoS), DiffServ Code Point (DSCP) support |
Overensstemmelsesstandarder | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p, IEEE 802.1ab (LLDP), IEEE 802.3ba |
Effekt | AC 120/230 V (50/60 Hz) |
Overskudsspænding | Ja |
Dimensioner (B x D x H) | 44.2 cm x 56.6 cm x 8.84 cm |
Vægt | 15.6 kg |
Producentgaranti | 1 års garanti |
Produktdatablad |
|
Enhedstype | Switch - 36 porte - L3 - Administreret |
Pakningstype | Desktop, monterbar på stativ 2U |
Undertype | 40 Gigabit Ethernet |
Porte | 36 x 40 Gigabit QSFP+ |
Præstation | Båndbredde: 1,44 Tbps |
Kapacitet | Længste præfix match (LPM) indtastninger (IPv4): 16000 ¦ Værttabelsindtastninger (IPv4): 88000 ¦ MAC adresser: 160000 ¦ IPv4 ruter (Multicast): 32000 ¦ Virtuelle grænseflader (VLANs): 4096 ¦ Equal-Cost Multipathing (ECMP) metoder: 64 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Per-VLAN Spanning Tree Plus-instanser: 507 ¦ Virtual Routing and Forwarding (VRF) optegnelser: 1000 ¦ IGMP spionage indgivelser: 32000 |
Jumborammesupport | Ja |
Routingprotokol | IS-IS, BGP, EIGRP, HSRP, VRRP, OSPFv2, PIM-SM, OSPFv3, MSDP, statisk IPv4 routing, ECMP, Bidirectional Forwarding Detection (BFD), VRRPv3 |
Protokol til fjernadministration | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2 |
Autentificeringsmetode | RADIUS, PAP, CHAP, TACACS+, MS-CHAP, MS-CHAP v.2 |
Egenskaber | Datatransport, modulærdesign, aktivitet, VLAN-understøttet, IGMP snooping, Syslog understøttet, Vægtet rundsendelses kø (WRR), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, RDMA support, Virtual Route Forwarding-Lite (VRF-Lite), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), LLDP support, DHCP videresendelse, Link Aggregation Control Protocol (LACP), Virtual Routing and Forwarding (VRF), Class of Service (CoS), DiffServ Code Point (DSCP) support |
Overensstemmelsesstandarder | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p, IEEE 802.1ab (LLDP), IEEE 802.3ba |
Interface | 36 x 40 Gbit LAN QSFP+ ¦ 2 x USB ¦ 1 x administration (Gigabit LAN) RJ-45 ¦ 1 x konsol RJ-45 |
Strømenhed | Intern strømforsyning - hot-plug |
Antal installeret | 2 |
Maks. antal understøttet | 2 |
Overskudsspænding | Ja |
Skema til overskudsspænding | 1+1 |
Strømforsyning | 1200 Watt |
Nødvendig spænding | AC 120/230 V (50/60 Hz) |
Rackmonteringspakke | Inkluderet |
Overensstemmelsesstandarder | CISPR 22 Klasse A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Klasse A, AS/NZS 60950-1, ICES-003 Klasse A, RoHS, UL 60950-1 Second Edition, GB 4943, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22 Class A, EN 300386 |
Bredde | 44.2 cm |
Dybde | 56.6 cm |
Højde | 8.84 cm |
Vægt | 15.6 kg |
Service & Support | Begrænset garanti - 1 år |
Min. driftstemperatur | 0 °C |
Maks. driftstemperatur | 40 °C |
Fugtighedsgrad ved brug | 5 - 95 % (ikke-kondenserende) |
Min. lagertemperatur | -40 °C |
Maks. Opbevaringstemperatur | 70 °C |
The Cisco Nexus 9300 Series Switches include both spine and leaf switches. The Cisco Nexus 9336PQ ACI Spine Switch is a 2-rack-unit (2RU) spine switch for Cisco ACI that supports 1.44 Tbps of bandwidth across 36 fixed 40 QSFP+ ports. The rest of the Cisco Nexus 9300 platform is composed of fixed-port leaf switches. Cisco Nexus 9300 platform leaf switches are Layer 2 and 3 nonblocking 10 and 40 Gigabit Eth The Cisco Nexus 9336PQ Switch is designed for a spine role only. The Nexus 9336PQ spine switch along with Nexus 9300 leaf nodes enable an automated and policy driven ACI architecture. The Cisco Nexus 9336 PQ offers advanced scalability in the smallest spine switch form factor, and enables connectivity to up-to 36 Cisco Nexus 9300 leaf switches with its high port density of 36 40 GbE ports and 1.44 Tbps throughput. The degree of redundancy in leaf-and-spine architectures delivers increased availability with a high level of flexibility in workload placement. ernet switches with up to 1.28 terabits per second (Tbps) of internal bandwidth.
