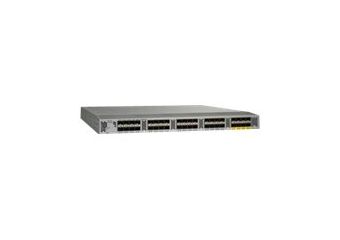

Cisco Nexus 2232PP 10GE Fabric Extender - ekspansionsmodul
Produktbeskrivelse | Cisco Nexus 2232PP 10GE Fabric Extender - ekspansionsmodul - Gigabit Ethernet / 10 Gb Ethernet / FCoE SFP+ x 32 + 10Gb Ethernet / FCoE SFP+ x 8 |
Enhedstype | Ekspansionsmodul |
Model | Rackmonterbar |
Porte | Gigabit Ethernet / 10 Gb Ethernet / FCoE SFP+ x 32 + 10Gb Ethernet / FCoE SFP+ x 8 |
Dimensioner (B x D x H) | 43.94 cm x 44.96 cm x 4.37 cm |
Vægt | 8.3 kg |
Dataforbindelsesprotokol | 10 GigE, FCoE |
Netværks/overføselsprotokol | TCP/IP, UDP/IP, ICMP/IP |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ae |
Producentgaranti | 1 års garanti |
Produktdatablad |
|
Enhedstype | Ekspansionsmodul |
Model | Rackmonterbar |
Porte | Gigabit Ethernet / 10 Gb Ethernet / FCoE SFP+ x 32 + 10Gb Ethernet / FCoE SFP+ x 8 |
Forbindelsesteknologi | Kabling |
Dataforbindelsesprotokol | 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE) |
Netværks/overføselsprotokol | TCP/IP, UDP/IP, ICMP/IP |
Protokol til fjernadministration | SNMP 1, SNMP 2, RMON, SNMP 3 |
Statusindikatorer | Portstatus, strøm, system |
Egenskaber | Datatransport, uplink, auto-negotiation, VLAN-understøttet, IGMP snooping, Syslog understøttet, Vægtet rundsendelses kø (WRR), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ae |
Ekspansionsåbninger | 40 (total) / 40 (fri) x SFP+ |
Overensstemmelsesstandarder | CISPR 22 Klasse A, BSMI CNS 13438 Class A, EN 61000-3-2, VCCI Klasse A ITE, EN 61000-3-3, EN55024, EN55022 Klasse A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Klasse A, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, EN 300 386 |
Strømenhed | Indstiksmodul |
Bredde | 43.94 cm |
Dybde | 44.96 cm |
Højde | 4.37 cm |
Vægt | 8.3 kg |
Service & Support | Begrænset garanti - ombytning - 1 år |
Min. driftstemperatur | 0 °C |
Maks. driftstemperatur | 40 °C |
Fugtighedsgrad ved brug | 5 - 95 % (ikke-kondenserende) |
The Cisco Nexus 2232PP 10GE fabric extender expands the Cisco Nexus 2000 series fabric extenders product line to provide a unified server access platform across a range of 100 Megabit Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, unified fabric, rack, and blade server environments.
The Cisco Nexus 2000 series fabric extenders behave as remote I/O modules for a parent Cisco Nexus 5000 series switch. The fabric extender is essentially an extension of the parent Cisco Nexus switch fabric, with the fabric extender and the parent Cisco Nexus switch together forming a virtual modular system.
The Cisco Nexus 2000 series forwards all traffic to the parent Cisco Nexus 5000 series switch over 10 Gigabit Ethernet uplinks. Passing all traffic to the parent switch allows traffic to be shaped according to policies established on the parent Cisco Nexus 5000 series switch with a single point of management.
