| Produktbeskrivelse
|

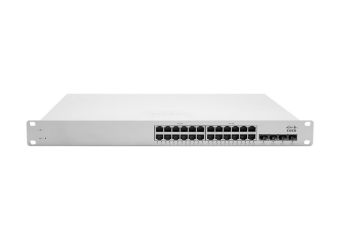

Cisco Meraki Cloud Managed MS320-24 - switch - 24 porte - Administreret - monterbar på stativ
|
| Enhedstype
|
Switch - 24 porte - Administreret
|
| Pakningstype
|
Monterbar på stativ
|
| Undertype
|
Gigabit Ethernet
|
| Porte
|
24 x 10/100/1000 + 4 x SFP+
|
| Routingprotokol
|
Statisk IP routing
|
| Protokol til fjernadministration
|
HTTP
|
| Egenskaber
|
Layer 3 switching, DHCP-understøttelse, auto-negotiation, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, portspejling, E-mail advarsel, Broadcast Storm Control, firmware kan opgraderes, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Jumbo Frames support, SMS alarmer, Link Aggregation Control Protocol (LACP), Zero Touch Auto Provisioning, sky-administreret
|
| Overensstemmelsesstandarder
|
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x
|
| Effekt
|
AC 120/230 V (50/60 Hz)
|
| Overskudsspænding
|
Valgfri
|
| Dimensioner (B x D x H)
|
48.46 cm x 44 cm x 4.44 cm
|
| Vægt
|
4.4 kg
|
| Producentgaranti
|
Begrænset livtidsgaranti
|
Produktdatablad |
|
| Enhedstype |
Switch - 24 porte - Administreret |
| Pakningstype |
Monterbar på stativ |
| Undertype |
Gigabit Ethernet |
| Porte |
24 x 10/100/1000 + 4 x SFP+ |
| Routingprotokol |
Statisk IP routing |
| Protokol til fjernadministration |
HTTP |
| Autentificeringsmetode |
RADIUS |
| Egenskaber |
Layer 3 switching, DHCP-understøttelse, auto-negotiation, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, portspejling, E-mail advarsel, Broadcast Storm Control, firmware kan opgraderes, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Jumbo Frames support, SMS alarmer, Link Aggregation Control Protocol (LACP), Zero Touch Auto Provisioning, sky-administreret |
| Overensstemmelsesstandarder |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x |
| Interface |
24 x 1000Base-T RJ-45 |
| Ekspansionsåbninger |
4 SFP+ |
| Strømenhed |
Intern strømforsyning |
| Overskudsspænding |
Valgfri |
| Strømforsyning |
370 Watt |
| Nødvendig spænding |
AC 120/230 V (50/60 Hz) |
| Overensstemmelsesstandarder |
CSA, C-Tick, IC, RoHS |
| Bredde |
48.46 cm |
| Dybde |
44 cm |
| Højde |
4.44 cm |
| Vægt |
4.4 kg |
| Service & Support |
Begrænset garanti - livstid |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
40 °C |
| Fugtighedsgrad ved brug |
5 - 95 % (ikke-kondenserende) |
The Cisco Meraki Cloud Networking architecture enables Plug and Play branch deployments and provides centralized visibility and control across any number of distributed locations. The Cisco Meraki MS is the industry's cloud managed switch, combining the benefits of cloud-based centralized management with a powerful, reliable access platform. With cloud management, thousands of switch ports can be configured and monitored instantly, over the web. Provision remote sites without on-site IT, deploy network-wide configuration changes, and easily manage campus and distributed networks without training or dedicated staff.
Cisco Meraki MS Switches feature virtual stacking - an industry first - that allows management of thousands of switch ports as one, without requiring a physical connection between switches. Quickly find and configure switch ports across your entire network, even those in geographically-distributed locations. Easily configure ports for access devices, assign voice VLANs, control PoE, and more, with a few simple clicks and without complex CLI instructions.
