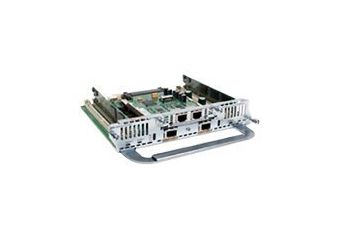

Cisco IP Communications High-Density

Cisco IP Communications High-Density tale / faxmodul

Producent Cisco
Produkt nr. NM-HDV2-2T1/E1=
EAN 0746320832128
Varenummer 193324
Lagerstatus:
  0 stk. København
  0 stk. Aarhus
  0 stk. Fjernlager
Forventet levering ved bestilling: 19-09-2017
Mere info
23.506,- DKK
Produktbeskrivelse Cisco IP Communications High-Density - tale / faxmodul
Enhedstype Tale / faxmodul
Formfaktor Intern
Protokol for digital signaltransmission H.323, MGCP, H.323v2, H.323v3, H.323v4, SIP
Protokoller og specifikationer ITU G.168, ITU Q.931, ITU T.37, ITU T.38
Liniefrekvens T-1/E-1
Liniekodningsformat AMI, B8ZS, HDB3, CMI
Protokol for datakomprimering G.729, G.711, G.723.1, G.728, G.726, G.722, G.729.A, G.729.B
Talekommunikationsunderstøtning VoIP, VoATM, VoFR
Antal digitalporte 2
Designet for Cisco 2611XM, 2621XM, 2651XM, 2821, 2851, 2911, 2921, 2951, 3745, 3825, 3845, 3845 V3PN, 3925, 3925E, 3945
Enhedstype Tale / faxmodul
Formfaktor Intern
Forbindelsesteknologi Kabling
Protokol for digital signaltransmission H.323, MGCP, H.323v2, H.323v3, H.323v4, SIP
Protokoller og specifikationer ITU G.168, ITU Q.931, ITU T.37, ITU T.38
Protokol for datakomprimering G.729, G.711, G.723.1, G.728, G.726, G.722, G.729.A, G.729.B
Talekommunikationsunderstøtning VoIP, VoATM, VoFR
Antal digitalporte 2
Liniefrekvens T-1/E-1
Liniekodningsformat AMI, B8ZS, HDB3, CMI
Egenskaber Eliminerer genlyd, Voice Activity Detection (VAD), Private Line Automatic Ring-Down (PLAR), Advanced Voice Busy-Out (AVBO), Local Voice Busy-Out (LVBO), Interactive Voice Response Support
Protokol til fjernadministration SNMP
Ekspansionsåbninger 1 (total) / 1 (fri) x VWIC
Interface 2 x netværk - T1/E1
Kompatible åbninger 1 x Ekspansionsholder
MTBF (forventet tid mellem fejl) 939,368 time(r)
Overensstemmelsesstandarder FCC Klasse B-certificeret, EN 60950, EN50082, EN55022, IEC 60950, CS-03, FCC CFR47 Part 15 B, EN 61000, TIA/EIA-968-A, TBR4, TBR12, TBR13
Min. driftstemperatur 0 °C
Maks. driftstemperatur 40 °C
Fugtighedsgrad ved brug 5 - 85% (ikke-kondenserende)
Designet for Cisco 2611XM VPN Bundle, 2621XM VPN Bundle, 2651XM VPN Bundle, 2821 Security Bundle, 2851 Security Bundle, 2911, 2911 Security Bundle, 2911 Voice Bundle, 2911 Voice Security and CUBE Bundle, 2911 Voice Security Bundle, 2921, 2921 Security Bundle, 2921 SRE Bundle, 2921 Voice Bundle, 2921 Voice Security and CUBE Bundle, 2921 Voice Security Bundle, 2951, 2951 Security Bundle, 2951 SRE Bundle, 2951 Voice Bundle, 2951 Voice Security and CUBE Bundle, 2951 Voice Security Bundle, 3745 VPN Bundle, 3825 Security Bundle, 3845 Security Bundle, 3845 V3PN Bundle, 3925, 3925 Security Bundle, 3925 SRE Bundle, 3925 Voice Bundle, 3925 Voice Security and CUBE Bundle, 3925 Voice Security Bundle, 3925E, 3925E Security Bundle, 3925E SRE Bundle, 3925E Voice Bundle, 3925E Voice Security and CUBE Bundle, 3925E Voice Security Bundle, 3945, 3945 Security Bundle, 3945 SRE Bundle, 3945 Voice Bundle, 3945 Voice Security and CUBE Bundle, 3945 Voice Security Bundle

The IP Communications High-Density Digital Voice/Fax Network Modules are the latest addition to the Cisco Systems IP Communications suite of solutions. The IP Communications High-Density Digital Voice/Fax Network Modules deliver high-density digital voice connectivity, high-density WAN connectivity, analog voice connectivity, and conferencing and transcoding capability in a network module form factor. The network modules provide enterprises, managed service providers, and service providers with the ability to directly connect the public switched telephone network (PSTN), traditional telephony equipment (such as private branch exchange (PBX), key systems, analog telephones, and fax machines), and WAN to existing Cisco 2600XM, Cisco 2691, and Cisco 3700 Series Multiservice Access routers for either IP Communications capabilities or pure toll bypass. The IP Communications High-Density Digital Voice/Fax Network Modules flexibly operates within two different Cisco AVVID (Architecture for Voice, Video and Integrated Data) IP Telephony environments - the Cisco CallManager system with Survivable Remote Site Telephony (SRST) or Cisco CallManager Express. The network modules can be integrated with these IP Telephony solutions in a Multiservice Access Router, to provide a complete IP Communications solution for full service branch customers.
The IP Communications High-Density Network module is supported on the Cisco 2600XM, Cisco 2691, and Cisco 3700 Series Multiservice Access routers, providing a broad range of selection depending on branch office sizes and communications needs. The network module can be reused as the platforms scale, delivering investment protection.
