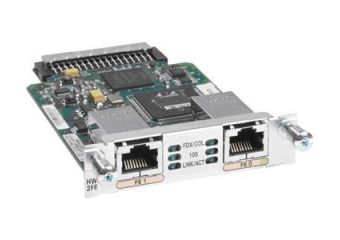

Cisco High-Speed - ekspansionsmodul

Producent: Cisco
Produkt nr: HWIC-2FE=
EAN: 0882658097171
Varenummer: F262399
billigst-pricerunner
Producent: Cisco
Produkt nr: HWIC-2FE=
EAN: 0882658097171
Varenummer: F262399

Varen kan pt. ikke skaffes eller er udgået. Kontakt evt. kundeservice for et alternativ


Billigste fragt 0,00 kr.

Gratis fragt

(Gælder op til 20 kg)

Læs mere her
Varen kan pt. ikke skaffes eller er udgået.
Kontakt evt. kundeservice for et alternativ.}
Producent: Cisco
Produkt nr: HWIC-2FE=
EAN: 0882658097171
Varenummer: F262399

Varen kan pt. ikke skaffes eller er udgået. Kontakt evt. kundeservice for et alternativ


Billigste fragt 0,00 kr.

Gratis fragt

(Gælder op til 20 kg)

Læs mere her
Produktbeskrivelse Cisco High-Speed - ekspansionsmodul - HWIC - 10/100 Ethernet x 2
Enhedstype Ekspansionsmodul
Model Indstiksmodul
Grænseflade (bus) type HWIC
Porte 10/100 Ethernet x 2
Dimensioner (B x D x H) 7.8 cm x 12 cm x 1.9 cm
Vægt 73 g
Kabeltype Ethernet 10Base-T, Ethernet 100Base-TX
Dataforbindelsesprotokol 10Mb LAN, 100Mb LAN
Dataoverførselshastighed 100 Mbps
Netværks/overføselsprotokol TCP/IP, L2TP, PPPoE
Overensstemmelsesstandarder IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x
Designet for Cisco 1921, 1921 4-pair, 1921 ADSL2+, 1941, 2901, 2911, 2921, 2951, 3825, 3825 V3PN, 3845, 3845 V3PN, 3925, 3925E, 3945, 3945E

Produktdatablad

Enhedstype Ekspansionsmodul
Model Indstiksmodul
Grænseflade (bus) type HWIC
Porte 10/100 Ethernet x 2
Forbindelsesteknologi Kabling
Kabeltype Ethernet 10Base-T, Ethernet 100Base-TX
Dataforbindelsesprotokol Ethernet, Fast Ethernet
Dataoverførselshastighed 100 Mbps
Netværks/overføselsprotokol TCP/IP, L2TP, PPPoE
Statusindikatorer Kollisionsstatus, dupleksmodus for port, tilslutning OK, 100M udstyr tilsluttet, link/aktivitet
Egenskaber Auto-sensing per device, DHCP-understøttelse, auto-negotiation, auto-uplink (auto MDI/MDI-X), IPv6 understøttet
Overensstemmelsesstandarder IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x
Interface 2 x 100Base-TX - RJ-45
Kompatible åbninger 1 x HWIC
Overensstemmelsesstandarder TUV GS, CISPR 22 Klasse A, CISPR 24, EN 60950, EN 61000-3-2, IEC950, UL 1950, VCCI Klasse A ITE, EN 61000-3-3, EN55024, CSA 22.2 No. 950, EN55022 Klasse A, EN50082-1, FCC Part 15, ICES-003 Klasse A, EN 300 386
Bredde 7.8 cm
Dybde 12 cm
Højde 1.9 cm
Vægt 73 g
Min. driftstemperatur 0 °C
Maks. driftstemperatur 40 °C
Fugtighedsgrad ved brug 10 - 90%
Designet for Cisco 1921, 1921 4-pair G.SHDSL bundle, 1921 ADSL2+ Annex M Bundle, 1921 ADSL2+ Bundle, 1921 SEC T1 Bundle, 1941, 1941 Mobile Wireless, 1941 Security, 1941 Security Bundle, 1941 SRE Bundle, 2901, 2901 Security Bundle, 2901 SRE Bundle, 2901 Voice Bundle, 2901 Voice Security and CUBE Bundle, 2901 Voice Security Bundle, 2911, 2911 Security Bundle, 2911 Voice Bundle, 2911 Voice Security and CUBE Bundle, 2911 Voice Security Bundle, 2921, 2921 Security Bundle, 2921 SRE Bundle, 2921 Voice Bundle, 2921 Voice Security and CUBE Bundle, 2921 Voice Security Bundle, 2951, 2951 Security Bundle, 2951 SRE Bundle, 2951 Voice Bundle, 2951 Voice Security and CUBE Bundle, 2951 Voice Security Bundle, 3825, 3825 Branch Office in a Box Bundle, 3825 Secure WAN Optimization Bundle, 3825 Security Bundle, 3825 V3PN Bundle, 3825 Voice Bundle, 3825 Voice Security Bundle, 3825 WAN Optimization Bundle, 3845, 3845 Branch Office in a Box Bundle, 3845 Secure WAN Optimization Bundle, 3845 Security Bundle, 3845 V3PN Bundle, 3845 Voice Bundle, 3845 Voice Security Bundle, 3845 WAN Optimization Bundle, 3925, 3925 Security Bundle, 3925 SRE Bundle, 3925 Voice Bundle, 3925 Voice Security and CUBE Bundle, 3925 Voice Security Bundle, 3925E, 3925E Security Bundle, 3925E SRE Bundle, 3925E Voice Bundle, 3925E Voice Security and CUBE Bundle, 3925E Voice Security Bundle, 3945, 3945 Security Bundle, 3945 SRE Bundle, 3945 Voice Bundle, 3945 Voice Security and CUBE Bundle, 3945 Voice Security Bundle, 3945E, 3945E Security Bundle, 3945E SRE Bundle, 3945E Voice Bundle, 3945E Voice Security and CUBE Bundle, 3945E Voice Security Bundle

The Cisco Fast Ethernet HWICs are singlewide interface cards that provide Cisco modular and integrated services routers with additional Layer 3 routed ports.
