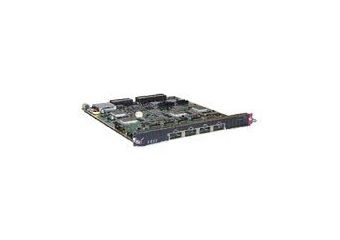

Cisco Catalyst 6500 Series 10 Gigabit Ethernet Interface Module - ekspansionsmodul - 4 porte
| Produktbeskrivelse | Cisco Catalyst 6500 Series 10 Gigabit Ethernet Interface Module - ekspansionsmodul - 4 porte |
| Enhedstype | Ekspansionsmodul |
| Model | Indstiksmodul |
| Dimensioner (B x D x H) | 35.6 cm x 40.6 cm x 3 cm |
| Vægt | 4.5 kg |
| Antal porte | 4 porte |
| Kabeltype | Ethernet 10GBase-X |
| Dataforbindelsesprotokol | 10 GigE |
| Dataoverførselshastighed | 10 Gbps |
| Præstation | Omkoblingskapacitet: 40 Gbps |
| RAM | 256 MB |
| Overensstemmelsesstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ak, IEEE 802.3an, IEEE 802.3aq |
| Designet for | Cisco 7606, 7606-S, 7609, 7609-S, 7613; Catalyst 6503-E, 6504-E, 6506, 6506-E, 6506-E IDSM-2, 6509, 6509-E, 6509-E 10Gig, 6509-NEB, 6509-NEB-A, 6509-V-E, 6513, 6513 10Gig |
Produktdatablad |
|
| Enhedstype | Ekspansionsmodul - 4 porte |
| Model | Indstiksmodul |
| Forbindelsesteknologi | Kabling |
| Kabeltype | Ethernet 10GBase-X |
| Dataforbindelsesprotokol | 10 Gigabit Ethernet |
| Dataoverførselshastighed | 10 Gbps |
| Præstation | Omkoblingskapacitet: 40 Gbps |
| Protokol til fjernadministration | RMON |
| Statusindikatorer | Portstatus, link/aktivitet |
| Egenskaber | Weighted Random Early Detection (WRED), Jumbo Frames support, Deficit Weighted Round Robin (DWRR) |
| Overensstemmelsesstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ak, IEEE 802.3an, IEEE 802.3aq |
| RAM | 256 MB |
| Interface | 4 x netværk - XENPAK |
| Kompatible åbninger | 1 x Ekspansionsholder |
| Overensstemmelsesstandarder | FCC Klasse A certificeret, CISPR 22 Klasse A, EN 60950, VCCI Klasse A ITE, IEC 60950, EN55024, EN55022 Klasse A, UL 60950, CSA 22.2 No. 60950, FCC CFR47 Part 15 |
| Bredde | 35.6 cm |
| Dybde | 40.6 cm |
| Højde | 3 cm |
| Vægt | 4.5 kg |
| Min. driftstemperatur | 0 °C |
| Maks. driftstemperatur | 40 °C |
| Fugtighedsgrad ved brug | 10 - 90 % (ikke-kondenserende) |
| Designet for | Cisco 7606, 7606 Security Bundle, 7606-S, 7609, 7609 Security Bundle, 7609-S, 7613, 7613 Security Bundle ¦ Cisco Catalyst 6503-E, 6503-E chassis with Supervisor Engine 32, 6503-E WSLM Bundle, 6504-E, 6504-E Application Control Engine (ACE) 20 Bundle, 6504-E chassis with Supervisor Engine 32, 6504-E with Supervisor Engine 720-3B, 6504-E with WiSM Bundle, 6506, 6506 chassis, 6506 Firewall Security System, 6506 Firewall Security System with Enhanced Chassis, 6506-E, 6506-E chassis with Supervisor Engine 32, 6506-E IDSM-2 Bundle with 2-Gbps Performance, 6506-E IPSec VPN SPA Security System Bundle, 6506-E VPN System, 6506-E WLSM Bundle, 6509, 6509 chassis, 6509 Firewall and IDS Security System, 6509 Firewall and VPN Security System, 6509 Wiring Closet Bundle, 6509-E, 6509-E 10Gig Firewall Security System Bundle, 6509-E Application Control Engine (ACE) 20 Bundle, 6509-E chassis with Supervisor Engine 32, 6509-E Firewall Security System Bundle, 6509-E Firewall Security System Bundle with Supervisor Engine 720-3BXL, 6509-E IPSec VPN SPA Security System, 6509-E with WiSM Bundle, 6509-NEB, 6509-NEB-A, 6509-V-E, 6513, 6513 10Gig Firewall Security System Bundle, 6513 chassis, 6513 Chassis with Supervisor Engine 32, 6513 Firewall Security System, 6513 IPSec VPN SPA Security System |
Designed for distribution to core and datacenter interconnections in networks, the 4-port 10 Gigabit Ethernet interface modules deliver highly scalable, high performance and flexible 10GbE forwarding capabilities with optional local acceleration and optional fully distributed forwarding. The WS-X6704-10GE provides higher system port density at an attractive price, encouraging the migration from Gigabit Etherchannel deployments to 10 Gigabit Ethernet.
