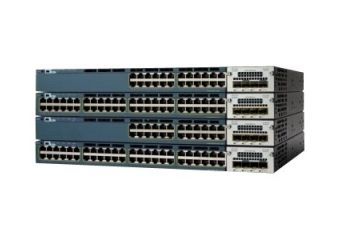

Cisco Catalyst 3560X-48P-E switch - 48 porte - Administreret - monterbar på stativ

Producent Cisco
Produkt nr. WS-C3560X-48P-E
EAN 0882658517167
Varenummer 505493
96.300,- DKK
Lagerstatus:
  0 stk. København
  0 stk. Aarhus
  0 stk. Fjernlager
Forventet levering ved bestilling: 11-09-2017
Mere info
Produktbeskrivelse Cisco Catalyst 3560X-48P-E - switch - 48 porte - Administreret - monterbar på stativ
Enhedstype Switch - 48 porte - L3 - Administreret
Pakningstype Monterbar p?? stativ 1U
Undertype Gigabit Ethernet
Porte 48 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE) PoE+
PoE-budget 435 W
Pr??station Skift af stofbåndbredde: 160 Gbps ¦ Fremsendelsespræstation: 101.2 Mpps
Kapacitet Virtuelle grænseflader (VLANs): 1005 ¦ Switched virtual interfaces (SVIs): 1000
Jumborammesupport 9216 byte
Routingprotokol OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, PIM-SM, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, statisk IPv4 routing, statisk IPv6 routing, police-baseret routing (PBR), RIPng
Protokol til fjernadministration SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Egenskaber Hotswap-moduludskiftning, Layer 2 switching, dynamisk tildeling af IP-adresser, DHCP-understøttelse, power over Ethernet (PoE), auto-negotiation, understøttet af ARP, trunking, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, traffic-shaping, Broadcast Storm Control, Høj rådighedsgrad, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MDL snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN)
Overensstemmelsesstandarder IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at
Effekt AC 120/230 V (50/60 Hz)
Overskudssp??nding Valgfri
Dimensioner (B x D x H) 44.5 cm x 46 cm x 4.45 cm
V??gt 7.4 kg
Producentgaranti Begr??nset livtidsgaranti
Servicepakker Begr??nset livtidsgaranti
Enhedstype Switch - 48 porte - L3 - Administreret
Pakningstype Monterbar p?? stativ 1U
Undertype Gigabit Ethernet
Porte 48 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE) PoE+
PoE-budget 435 W
Pr??station Skift af stofbåndbredde: 160 Gbps ¦ Fremsendelsespræstation: 101.2 Mpps
Kapacitet Virtuelle grænseflader (VLANs): 1005 ¦ Switched virtual interfaces (SVIs): 1000
Jumborammesupport 9216 byte
Routingprotokol OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, PIM-SM, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, statisk IPv4 routing, statisk IPv6 routing, police-baseret routing (PBR), RIPng
Protokol til fjernadministration SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Autentificeringsmetode Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Egenskaber Hotswap-moduludskiftning, Layer 2 switching, dynamisk tildeling af IP-adresser, DHCP-understøttelse, power over Ethernet (PoE), auto-negotiation, understøttet af ARP, trunking, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, traffic-shaping, Broadcast Storm Control, Høj rådighedsgrad, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MDL snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN)
Overensstemmelsesstandarder IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at
RAM 256 MB
Flashhukommelse 128 MB
Statusindikatorer Portstatus, ports transmissionshastighed, dupleksmodus for port, strøm, system, link/aktivitet
Interface 48 x Gigabit LAN - RJ-45 - PoE+ ¦ 1 x USB - Type A ¦ 1 x USB - Type B - administration ¦ 1 x administration (RS-232) - RJ-45 - administration ¦ 1 x 100Base-TX - RJ-45 - administration
Ekspansions??bninger 1 (total) / 1 (fri) x Ekspansionsholder
Str??menhed Intern str??mforsyning
Antal installeret 1 (installeret) / 2 (maks.)
Overskudssp??nding Valgfri
Skema til overskudssp??nding 1+1 (med valgfrit netaggregat)
Str??mforsyning 715 Watt
N??dvendig sp??nding AC 120/230 V (50/60 Hz)
Egenskaber Redundant Power System (RPS) konnektor
Rackmonteringspakke Valgfri
MTBF (forventet tid mellem fejl) 149,594 timer
Overensstemmelsesstandarder TUV GS, CISPR 22 Klasse A, GOST, cUL, NOM, VCCI Klasse A ITE, EN55022 Klasse A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1
Med software Cisco IOS IP Services
Bredde 44.5 cm
Dybde 46 cm
H??jde 4.45 cm
V??gt 7.4 kg
Service & Support Begrænset garanti - livstid ¦ Begrænset garanti - strømforsyning og blæsere - 5 år ¦ Opdatering af nye udgaver - livstid ¦ Teknisk understøttelse - 90 dage
Min. driftstemperatur -5 ??C
Fugtighedsgrad ved brug 5 - 95 % (ikke-kondenserende)
Min. lagertemperatur -40 ??C
Maks. Opbevaringstemperatur 70 ??C

The Cisco Catalyst 3560-X switch is an enterprise-class standalone switch. This switch provides security, energy efficiency, and ease of operation with innovative features. The Cisco Catalyst 3560-X enhances productivity by enabling applications such as IP telephony, wireless, and video for borderless network experience.
