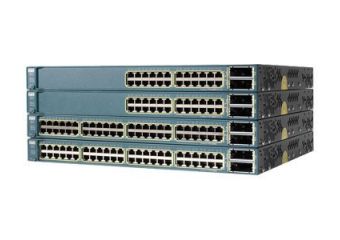

Cisco Catalyst 3560E-48TD - switch - 48 porte - Administreret - monterbar på stativ
Produktbeskrivelse | Cisco Catalyst 3560E-48TD-S - switch - 48 porte - Administreret - monterbar på stativ |
Enhedstype | Switch - 48 porte - L3 - Administreret |
Pakningstype | Monterbar på stativ 1U |
Undertype | Gigabit Ethernet |
Porte | 48 x 10/100/1000 + 2 x X2 |
MAC adresse table størrelse | 12K indtastningshukommelse |
Routingprotokol | RIP-1, RIP-2, statisk IP routing, RIPng |
Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2 |
Egenskaber | Komplet duplex ydeevne, Layer 3 switching, Layer 2 switching, auto-sensing per device, IP-routing, DHCP-understøttelse, auto-negotiation, trunking, understøttet af MPLS, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic-shaping, håndterbar, IPv6 understøttet, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), MDL snooping, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR) |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
Effekt | AC 120/230 V (50/60 Hz) |
Dimensioner (B x D x H) | 44.5 cm x 46 cm x 4.5 cm |
Vægt | 8.6 kg |
Producentgaranti | 90 dages garanti |
Produktdatablad |
|
Enhedstype | Switch - 48 porte - L3 - Administreret |
Pakningstype | Monterbar på stativ 1U |
Undertype | Gigabit Ethernet |
Porte | 48 x 10/100/1000 + 2 x X2 |
MAC adresse table størrelse | 12K indtastningshukommelse |
Routingprotokol | RIP-1, RIP-2, statisk IP routing, RIPng |
Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2 |
Autentificeringsmetode | Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
Egenskaber | Komplet duplex ydeevne, Layer 3 switching, Layer 2 switching, auto-sensing per device, IP-routing, DHCP-understøttelse, auto-negotiation, trunking, understøttet af MPLS, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic-shaping, håndterbar, IPv6 understøttet, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), MDL snooping, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR) |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
RAM | 128 MB |
Flashhukommelse | 64 MB Flash |
Statusindikatorer | Ports transmissionshastighed, dupleksmodus for port, båndbreddebenyttelse i %, strøm, tilslutning OK, system, link/aktivitet |
Interface | 48 x 1000Base-T RJ-45 ¦ 1 x konsol RJ-45 administration ¦ 1 x 100Base-TX RJ-45 administration ¦ 2 x X2 |
Strømenhed | Intern strømforsyning |
Nødvendig spænding | AC 120/230 V (50/60 Hz) |
Strømforbrug ved drift | 151 Watt |
Egenskaber | Redundant Power System (RPS) konnektor |
MTBF (forventet tid mellem fejl) | 166,907 timer |
Overensstemmelsesstandarder | FCC Klasse A certificeret, TUV GS, BSMI CNS 13438 Class A, CISPR 24, cUL, EN 60950, EN55022, NOM, VCCI Klasse A ITE, IEC 60950, EN55024, UL 60950 Third Edition, CISPR 22, CSA 22.2 No. 60950, CB, AS/NZ 3548 Class A, FCC Part 15, MIC, RoHS |
Med software | Cisco IOS IP Base |
Bredde | 44.5 cm |
Dybde | 46 cm |
Højde | 4.5 cm |
Vægt | 8.6 kg |
Service & Support | Begrænset garanti - 90 dage |
Min. driftstemperatur | 0 °C |
Maks. driftstemperatur | 45 °C |
Fugtighedsgrad ved brug | 0 - 95% |
Cisco Catalyst 3560-E Series is an enterprise-class line of standalone access and aggregation switches that facilitate the deployment of secure converged applications while maximizing investment protection for evolving network and application requirements. The Cisco Catalyst 3560-E Series access switches enhance worker productivity by enabling applications such as IP telephony, wireless, and video. Cisco Catalyst 3560-E Series aggregation switches deliver secure non-stop unified network services and versatile connectivity in a one rack-unit (1-RU) form factor for space and power constrained environments, enabling businesses to reduce total cost of ownership while maximizing investment protection.
