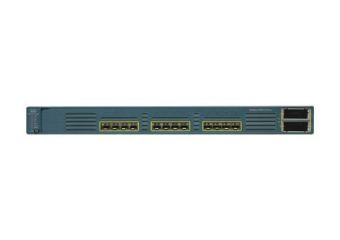

Cisco Catalyst 3560E-12SD-E switch - 12 porte - Administreret - monterbar på stativ

Producent: Cisco
Produkt nr.: WS-C3560E-12SD-E
EAN: 0008265819634
Varenummer: 169970
Lagerstatus:
  0 stk. København
  0 stk. Aarhus
  0 stk. Fjernlager
Forventet levering ved bestilling: 31-12-2017
Mere info
112.560,- DKK
Produktbeskrivelse Cisco Catalyst 3560E-12SD-E - switch - 12 porte - Administreret - monterbar på stativ
Enhedstype Switch - 12 porte - L3 - Administreret
Pakningstype Monterbar på stativ 1U
Undertype Gigabit Ethernet
Porte 12 x Gigabit SFP + 2 x X2
Præstation Omkoblingskapacitet: 68 Gbps ¦ Fremsendelsespræstation: 47,6 Mpps
Kapacitet Virtuelle grænseflader (VLANs): 1000 ¦ Switched virtual interfaces (SVIs): 1000
Jumborammesupport 9216 byte
Routingprotokol OSPF, BGP-4, RIP-1, RIP-2, EIGRP, HSRP, DVMRP, PIM-SM, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, statisk IPv4 routing, statisk IPv6 routing, police-baseret routing (PBR), RIPng, WCCPv2
Protokol til fjernadministration SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Egenskaber Auto-sensing per device, DHCP-understøttelse, auto-negotiation, understøttet af ARP, trunking, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), Cisco Gigabit EtherChannel, IGMP snooping, Syslog understøttet, traffic-shaping, Broadcast Storm Control, IPv6 understøttet, halv dupleksmodus, fuld dupleksmodus, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Virtual Route Forwarding-Lite (VRF-Lite), MDL snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), lag 3 belastningsudbalancering
Overensstemmelsesstandarder IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Overskudsspænding Ja
Dimensioner (B x D x H) 44.5 cm x 38.1 cm x 4.5 cm
Vægt 7.3 kg
Producentgaranti Begrænset livtidsgaranti
Servicepakker Begrænset livtidsgaranti
Enhedstype Switch - 12 porte - L3 - Administreret
Pakningstype Monterbar på stativ 1U
Undertype Gigabit Ethernet
Porte 12 x Gigabit SFP + 2 x X2
Præstation Omkoblingskapacitet: 68 Gbps ¦ Fremsendelsespræstation: 47,6 Mpps
Kapacitet Virtuelle grænseflader (VLANs): 1000 ¦ Switched virtual interfaces (SVIs): 1000
Jumborammesupport 9216 byte
Routingprotokol OSPF, BGP-4, RIP-1, RIP-2, EIGRP, HSRP, DVMRP, PIM-SM, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, statisk IPv4 routing, statisk IPv6 routing, police-baseret routing (PBR), RIPng, WCCPv2
Protokol til fjernadministration SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Autentificeringsmetode Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Egenskaber Auto-sensing per device, DHCP-understøttelse, auto-negotiation, understøttet af ARP, trunking, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), Cisco Gigabit EtherChannel, IGMP snooping, Syslog understøttet, traffic-shaping, Broadcast Storm Control, IPv6 understøttet, halv dupleksmodus, fuld dupleksmodus, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Virtual Route Forwarding-Lite (VRF-Lite), MDL snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), lag 3 belastningsudbalancering
Overensstemmelsesstandarder IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Flashhukommelse 64 MB Flash
Statusindikatorer Ports transmissionshastighed, dupleksmodus for port, båndbreddebenyttelse i %, strøm, tilslutning OK, system, link/aktivitet
Interface 2 x 10Gb Ethernet - X2 ¦ 1 x konsol RJ-45 administration ¦ 1 x 100Base-TX RJ-45 administration ¦ 12 x SFP (mini-GBIC)
Strømenhed Intern strømforsyning - hot-plug
Antal installeret 2 (installeret) / 2 (maks.)
Overskudsspænding Ja
Skema til overskudsspænding 1+1
Strømforbrug ved drift 82 Watt
MTBF (forventet tid mellem fejl) 206,950 timer
Overensstemmelsesstandarder NEBS niveau 3, FCC Klasse A certificeret, TUV GS, CISPR 22 Klasse A, GOST, cUL, NOM, VCCI Klasse A ITE, EN55022 Klasse A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, FCC Part 15, MIC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1
Med software Cisco IOS IP Services
Bredde 44.5 cm
Dybde 38.1 cm
Højde 4.5 cm
Vægt 7.3 kg
Service & Support Begrænset garanti - livstid
Min. driftstemperatur 0 °C
Maks. driftstemperatur 45 °C
Fugtighedsgrad ved brug 0 - 95% (ikke-kondenserende)
Min. lagertemperatur -25 °C
Maks. Opbevaringstemperatur 70 °C
Lagerfugtighedsgrad 10 - 85 % (ikke-kondenserende)

Cisco Catalyst 3560-E Series is an enterprise-class line of standalone access and aggregation switches that facilitate the deployment of secure converged applications while maximizing investment protection for evolving network and application requirements. Combining 10/100/1000 and Power over Ethernet (PoE) configurations with 10 Gigabit Ethernet uplinks, the Cisco Catalyst 3560-E Series access switches enhance worker productivity by enabling applications such as IP telephony, wireless, and video. Cisco Catalyst 3560-E Series aggregation switches deliver secure non-stop unified network services and versatile connectivity in a one rack-unit (1-RU) form factor for space and power constrained environments, enabling businesses to reduce total cost of ownership while maximizing investment protection.
