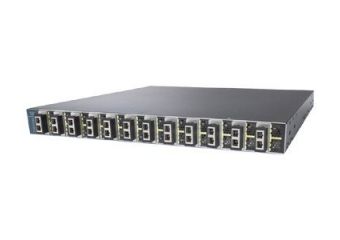

Cisco Catalyst 3560E-12D switch - 12 porte - Administreret - monterbar på stativ

Producent Cisco
Produkt nr. WS-C3560E-12D-S
EAN 0882658152580
Varenummer 142214
128.510,- DKK
Lagerstatus:
  0 stk. København
  0 stk. Aarhus
  0 stk. Fjernlager
Forventet levering ved bestilling: 11-09-2017
Mere info
Produktbeskrivelse Cisco Catalyst 3560E-12D - switch - 12 porte - Administreret - monterbar på stativ
Enhedstype Switch - 12 porte - Administreret
Pakningstype Monterbar p?? stativ 1U
Undertype 10 Gigabit Ethernet
Porte 12 x X2
Routingprotokol OSPF, BGP-4, RIP-1, RIP-2, EIGRP, HSRP, DVMRP, PIM-SM, statisk IP routing, PIM-DM, OSPFv3
Protokol til fjernadministration SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH
Egenskaber Auto-sensing per device, DHCP-understøttelse, auto-negotiation, understøttet af ARP, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, traffic-shaping, Broadcast Storm Control, IPv6 understøttet, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS)
Overensstemmelsesstandarder IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Effekt AC 120/230 V (50/60 Hz)
Overskudssp??nding Ja
Dimensioner (B x D x H) 44.5 cm x 49.5 cm x 4.5 cm
V??gt 10.7 kg
Producentgaranti 90 dages garanti
Servicepakker 90 dages garanti
Enhedstype Switch - 12 porte - Administreret
Pakningstype Monterbar p?? stativ 1U
Undertype 10 Gigabit Ethernet
Porte 12 x X2
Routingprotokol OSPF, BGP-4, RIP-1, RIP-2, EIGRP, HSRP, DVMRP, PIM-SM, statisk IP routing, PIM-DM, OSPFv3
Protokol til fjernadministration SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH
Autentificeringsmetode Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Egenskaber Auto-sensing per device, DHCP-understøttelse, auto-negotiation, understøttet af ARP, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, traffic-shaping, Broadcast Storm Control, IPv6 understøttet, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS)
Overensstemmelsesstandarder IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
RAM 256 MB
Flashhukommelse 64 MB Flash
Statusindikatorer Båndbreddebenyttelse i %, strøm, tilslutning OK, system, link/aktivitet
Interface 12 x X2
Str??menhed Intern str??mforsyning - hot-plug
Antal installeret 2 (installeret) / 2 (maks.)
Overskudssp??nding Ja
N??dvendig sp??nding AC 120/230 V (50/60 Hz)
Overensstemmelsesstandarder FCC Klasse A certificeret, TUV GS, CISPR 22 Klasse A, GOST, cUL, NOM, VCCI Klasse A ITE, EN55022 Klasse A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, FCC Part 15, MIC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1
Med software Cisco IOS IP Base
Bredde 44.5 cm
Dybde 49.5 cm
H??jde 4.5 cm
V??gt 10.7 kg
Service & Support Begr??nset garanti - 90 dage
Min. driftstemperatur 0 ??C
Maks. driftstemperatur 45 ??C
Fugtighedsgrad ved brug 0 - 95%

The Cisco Catalyst 3560E-12D, a 12-port 10 Gigabit Ethernet switch offers flexible and highly available aggregation solutions for nonstop unified network services. Dynamic routing, dual hot-swappable power supplies, and redundant field-replaceable fans enhance switch availability. Compatibility with the Cisco TwinGig module makes the Cisco Catalyst 3560-E Series aggregation switches ideal solutions for networks undergoing a gradual upgrade from Gigabit Ethernet to 10 Gigabit Ethernet. This future-proofs the network for forthcoming business growth while reducing the total cost of ownership.
The Cisco Catalyst 3560E-12D is well suited for space- and power-constrained deployments because of the compact 1RU form factor, economical power needs and efficient cooling. Ideally suited to support secure converged applications such as Cisco TelePresence and unified communications, the Cisco Catalyst 3560E-12D delivers high-performance intelligent switching with the robust feature set.
