| Produktbeskrivelse
|

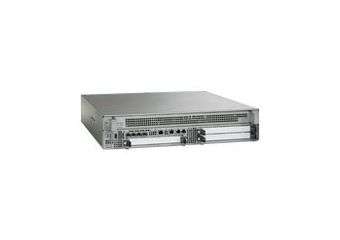

Cisco ASR 1002 HA Bundle - router - desktop - med Cisco ASR 1000 Serie Indlagt Service Processor, 10Gbps
|
| Enhedstype
|
Router - med Cisco ASR 1000 Serie Indlagt Service Processor, 10Gbps
|
| Pakningstype
|
Desktop - modulær - 2U
|
| Protokol til fjernadministration
|
SNMP, Telnet, SSH
|
| Egenskaber
|
VPN support, understøttet af MPLS, IPv6 understøttet, Stateful switchover (SSO), MPLS VPN
|
| Effekt
|
AC 120/230 V (50/60 Hz)
|
| Dimensioner (B x D x H)
|
43.7 cm x 55.6 cm x 8.9 cm
|
Produktdatablad |
|
| Enhedstype |
Router - med Cisco ASR 1000 Serie Indlagt Service Processor, 10Gbps |
| Pakningstype |
Desktop - modulær - 2U |
| Forbindelsesteknologi |
Kabling |
| Protokol til fjernadministration |
SNMP, Telnet, SSH |
| Egenskaber |
VPN support, understøttet af MPLS, IPv6 understøttet, Stateful switchover (SSO), MPLS VPN |
| Overensstemmelsesstandarder |
CISPR 24, EN55022, VCCI Klasse A ITE, EN55024, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZS 60950-1, AS/NZ 3548 Class A, ICES-003 Klasse A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, EN 300 386 |
| RAM |
4 GB |
| Interface |
Lederskab: 1 x 10Base-T/100Base-TX - RJ-45 ¦ Lederskab: 1 x konsol - RJ-45 ¦ Lederskab: 1 x hjælpeværktøj - RJ-45 ¦ 4 x SFP (mini-GBIC) |
| Ekspansionsåbninger |
3 (total) / 3 (fri) x ekspansionsåbning ¦ 1 (total) / 0 (fri) x processorkort |
| Antal installerede moduler (Max) |
1 (installeret) / 4 (maks.) |
| Strømenhed |
Intern strømforsyning |
| Overskudsspænding |
Ja |
| Antal installeret |
2 (installeret) / 2 (maks.) |
| Nødvendig spænding |
AC 120/230 V (50/60 Hz) |
| Rackmonteringspakke |
Inkluderet |
| Med OS |
Cisco IOS Advanced Enterprise Services |
| Bredde |
43.7 cm |
| Dybde |
55.6 cm |
| Højde |
8.9 cm |
| Min. driftstemperatur |
5 °C |
| Maks. driftstemperatur |
40 °C |
| Fugtighedsgrad ved brug |
5 - 90% |
The Cisco ASR 1002 router in a 2-rack unit (RU) form factor comes with an integrated route and serial interface processors. It houses three shared port adapter (SPA) slots supporting single height and dual height SPAs. Configurable with either the 5 Gbps or 10 Gbps embedded services processor and four built-in gigabit Ethernet ports, it is an ideal solution for a large branch office or as a managed high-speed customer premises equipment (CPE) device to support enhanced features such as security, deep packet inspection, and firewall.
