Produktbeskrivelse
|

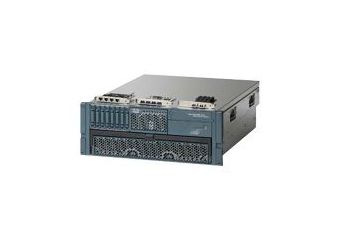

Cisco ASA 5580-40 Firewall Edition 4 10Gigabit Ethernet Bundle - sikkerhedsudstyr
|
Enhedstype
|
Sikkerhedsudstyr
|
Formfaktor
|
Rackmonterbar - 4U
|
RAM
|
12 GB
|
Flashhukommelse
|
1 GB
|
Antal porte
|
4
|
Dataforbindelsesprotokol
|
10 Gigabit Ethernet
|
Præstation
|
Firewall-gennemløb: 10 Gbps ¦ VPN-gennemløb: 1 Gbps ¦ VPN-kapacitet (3DES/AES): 1 Gbps ¦ Tilslutningsrate: 150000 tilslutninger per sekund
|
Kapacitet
|
Samvirkende tilslutninger: 2000000 ¦ Virtuelle grænseflader (VLANs): 100 ¦ SSL VPN-peers: 2 ¦ Sikkerhedspolitikker: 2 ¦ IPSec VPN peers: 10000
|
Effekt
|
AC 120/230 V (50/60 Hz)
|
Dimensioner (B x D x H)
|
48.3 cm x 67.3 cm x 17.6 cm
|
Vægt
|
29.9 kg
|
Produktdatablad |
|
Enhedstype |
Sikkerhedsudstyr |
Højde (rackenheder) |
4U |
Antal installerede moduler (Max) |
2 (6) |
Bredde |
48.3 cm |
Dybde |
67.3 cm |
Højde |
17.6 cm |
Vægt |
29.9 kg |
RAM |
12 GB |
Flashhukommelse |
1 GB |
Model |
Rackmonterbar |
Antal porte |
4 |
Forbindelsesteknologi |
Kabling |
Dataforbindelsesprotokol |
10 Gigabit Ethernet |
Netværks/overføselsprotokol |
IPSec |
Præstation |
Firewall-gennemløb: 10 Gbps ¦ VPN-gennemløb: 1 Gbps ¦ VPN-kapacitet (3DES/AES): 1 Gbps ¦ Tilslutningsrate: 150000 tilslutninger per sekund |
Kapacitet |
Samvirkende tilslutninger: 2000000 ¦ Virtuelle grænseflader (VLANs): 100 ¦ SSL VPN-peers: 2 ¦ Sikkerhedspolitikker: 2 ¦ IPSec VPN peers: 10000 |
Egenskaber |
Firewallbeskyttelse, VPN support, aktivitet, VLAN-understøttet |
Krypterings algoritme |
DES, trippel DES, AES |
Ekspansionsåbninger |
6 (total) / 4 (fri) x ekspansionsåbning |
Interface |
2 x administration ¦ 2 x USB 2.0 - Type A ¦ 1 x administration - RJ-45 ¦ 4 x 10GBASE-SR x 2 |
Overensstemmelsesstandarder |
FCC Klasse A certificeret, CISPR 22 Klasse A, EN 60950, EN 61000-3-2, VCCI Klasse A ITE, IEC 60950, EN 61000-3-3, EN55022 Klasse A, UL 60950, CSA 22.2 No. 60950, AS/NZS 3260, FCC Part 15 |
Strømenhed |
Intern strømforsyning - hot-plug |
Antal installeret |
2 |
Maks. antal understøttet |
2 |
Nødvendig spænding |
AC 120/230 V (50/60 Hz) |
Strømforsyning |
800 Watt |
Min. driftstemperatur |
10 °C |
Maks. driftstemperatur |
35 °C |
Fugtighedsgrad ved brug |
10 - 90% |
The Cisco ASA 5580 Series is designed to protect these media-rich, highly transactional and latency-sensitive applications at the enterprise data center and Internet gateway by providing a security solution with market-leading throughput, the highest connection rates in the industry, very large policy configurations, and very low latency. This makes the appliance highly suitable for the security needs of organizations with the most demanding applications, such as voice, video, data backup, scientific or grid computing, and financial trading systems.
