| Produktbeskrivelse
|

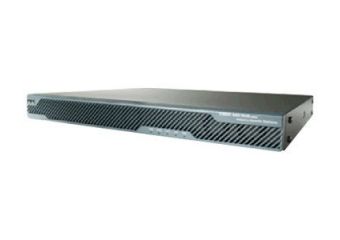

Cisco ASA 5510 IPS Solution Bundle - sikkerhedsudstyr - med Cisco Advanced Inspection and Prevention Security Services Module 10 (AIP-SSM-10)
|
| Enhedstype
|
Sikkerhedsudstyr
|
| Formfaktor
|
Rackmonterbar - 1U
|
| RAM
|
1 GB
|
| Flashhukommelse
|
256 MB
|
| Dataforbindelsesprotokol
|
Ethernet, Fast Ethernet, Gigabit Ethernet
|
| Præstation
|
Firewall-gennemløb: 300 Mbps ¦ Firewall-gennemløb + anti-x services: 150 Mbps ¦ VPN-gennemløb: 170 Mbps ¦ Tilslutningsrate: 9000 tilslutninger per sekund
|
| Kapacitet
|
IPSec VPN peers: 250 ¦ SSL VPN-peers: 2 ¦ Sideløbende sessioner: 50000
|
| Effekt
|
AC 120/230 V (50/60 Hz)
|
| Dimensioner (B x D x H)
|
44.5 cm x 33.5 cm x 4.4 cm
|
| Vægt
|
9.1 kg
|
| Bundtet med
|
Cisco Advanced Inspection and Prevention Security Services Module 10 (AIP-SSM-10)
|
Produktdatablad |
|
| Enhedstype |
Sikkerhedsudstyr |
| Højde (rackenheder) |
1U |
| Antal installerede moduler (Max) |
1 (1) |
| Bredde |
44.5 cm |
| Dybde |
33.5 cm |
| Højde |
4.4 cm |
| Vægt |
9.1 kg |
| Bundtet med |
Cisco Advanced Inspection and Prevention Security Services Module 10 (AIP-SSM-10) |
| RAM |
1 GB |
| Flashhukommelse |
256 MB |
| Model |
Rackmonterbar |
| Forbindelsesteknologi |
Kabling |
| Dataforbindelsesprotokol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Netværks/overføselsprotokol |
IPSec |
| Præstation |
Firewall-gennemløb: 300 Mbps ¦ Firewall-gennemløb + anti-x services: 150 Mbps ¦ VPN-gennemløb: 170 Mbps ¦ Tilslutningsrate: 9000 tilslutninger per sekund |
| Kapacitet |
IPSec VPN peers: 250 ¦ SSL VPN-peers: 2 ¦ Sideløbende sessioner: 50000 |
| Egenskaber |
Firewallbeskyttelse, VPN support, aktivitet, VLAN-understøttet, Intrusion Prevention System (IPS) |
| Krypterings algoritme |
Trippel DES, AES |
| Ekspansionsåbninger |
1 (total) / 0 (fri) x ekspansionsåbning |
| Interface |
3 x 100Base-TX - RJ-45 ¦ 1 x 100Base-TX (administration) ¦ 1 x administration - RJ-45 ¦ 1 x serial ¦ 2 x USB 2.0 - Type A ¦ 2 x 1000Base-T - RJ-45 |
| Overensstemmelsesstandarder |
FCC Klasse A certificeret, CISPR 22 Klasse A, EN 60950, EN 61000-3-2, UL 1950, VCCI Klasse A ITE, IEC 60950, EN 61000-3-3, CSA 22.2 No. 950, EN55022 Klasse A, ACA TS001, AS/NZS 3260, FCC Part 15 |
| Strømenhed |
Intern strømforsyning |
| Nødvendig spænding |
AC 120/230 V (50/60 Hz) |
| Med software |
Cisco IOS Security Plus |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
40 °C |
| Fugtighedsgrad ved brug |
5 - 95% |
The Cisco ASA 5500 Series IPS Solution provides intrusion prevention, firewall, and VPN in a single, easy-to-deploy platform. Intrusion prevention services enhance firewall protection by looking deeper into the flows to provide protection against threats, including worms, Trojans, distributed denial of service, reconnaissance, and exploits against application and OS vulnerabilities. The intrusion prevention capabilities of the ASA 5500 Series IPS Solution are delivered using a hardware-accelerated intrusion prevention module, the Cisco ASA Advanced Inspection and Prevention Security Services Module (AIP-SSM).
