Produktdatablad |
|
Enhedstype |

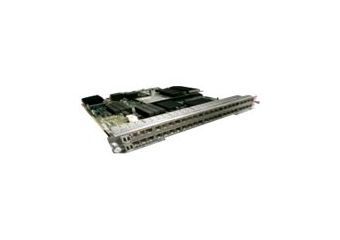

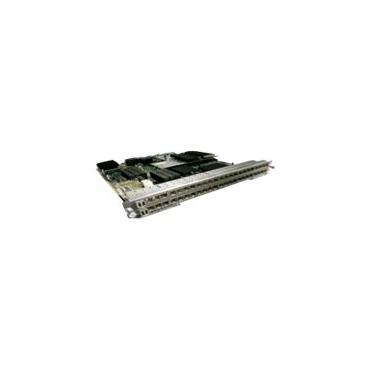

Ekspansionsmodul - 48 porte |
Model |
Indstiksmodul |
Forbindelsesteknologi |
Kabling |
Dataforbindelsesprotokol |
Gigabit Ethernet |
Dataoverførselshastighed |
1 Gbps |
Statusindikatorer |
Status, link/aktivitet |
Egenskaber |
Jumbo Frames support, Link Aggregation Control Protocol (LACP) |
Overensstemmelsesstandarder |
IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s |
RAM |
1 GB |
Interface |
48 x netværk - SFP (mini-GBIC) |
Kompatible åbninger |
1 x Ekspansionsholder |
Overensstemmelsesstandarder |
CISPR 22 Klasse A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Klasse A ITE, EN 61000-3-3, EN55024, EN55022 Klasse A, EN50082-1, EN 61000-6-1, ICES-003 Klasse A, FCC CFR47 Part 15, FCC CFR21 Part 1040, IEC 60950-1, EN 60950-1, IEC 60825-1, EN 60825-1, CAN/CSA-C22.2 No. 60950-1 |
Strømforbrug ved drift |
334.44 Watt |
Bredde |
35.6 cm |
Dybde |
40.6 cm |
Højde |
3 cm |
Min. driftstemperatur |
0 °C |
Maks. driftstemperatur |
40 °C |
Fugtighedsgrad ved brug |
10 - 90 % (ikke-kondenserende) |
Designet for |
Cisco Catalyst 6503-E, 6503-E chassis with Supervisor Engine 32, 6503-E Firewall Security System Bundle, 6503-E WSLM Bundle, 6504-E, 6504-E Application Control Engine (ACE) 20 Bundle, 6504-E chassis with Supervisor Engine 32, 6504-E with Supervisor Engine 720-3B, 6504-E with WiSM Bundle, 6506-E, 6506-E chassis with Supervisor Engine 32, 6506-E Firewall Security System Bundle, 6506-E IDSM-2 Bundle with 2-Gbps Performance, 6506-E IPSec VPN SPA Security System Bundle, 6506-E VPN System, 6506-E WLSM Bundle, 6509-E, 6509-E 10Gig Firewall Security System Bundle, 6509-E Application Control Engine (ACE) 20 Bundle, 6509-E Application Control Engine (ACE) 30 8G Bundle, 6509-E chassis with Supervisor Engine 32, 6509-E Data Center Services Bundle, 6509-E Firewall Security System Bundle, 6509-E Firewall Security System Bundle with Supervisor Engine 720-3BXL, 6509-E IPSec VPN SPA Security System, 6509-E with Supervisor Engine 720, 6509-E with WiSM Bundle, 6513-E |
