Produktbeskrivelse
|

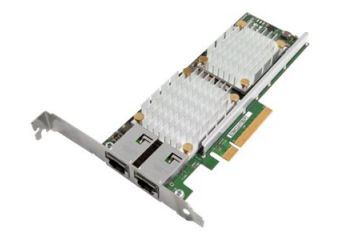

Broadcom NetXtreme II Dual-Port 10GBASE-T Adapter for Lenovo System x - netværksadapter - PCIe 2.0 x8 - 10Gb Ethernet x 2
|
Enhedstype
|
Netværksadapter
|
Model
|
Indstikskort
|
Grænseflade (bus) type
|
PCI Express 2.0 x8
|
Porte
|
10Gb Ethernet x 2
|
Dimensioner (B x D x H)
|
1.73 cm x 15 cm x 7 cm
|
Kabeltype
|
Ethernet 10GBase-T
|
Dataforbindelsesprotokol
|
10 GigE
|
Dataoverførselshastighed
|
10 Gbps
|
Netværks/overføselsprotokol
|
TCP/IP, UDP/IP
|
Processor
|
BCM57712
|
Overensstemmelsesstandarder
|
IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 801.1p
|
Systemkrav
|
SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, Microsoft Windows Server 2008, Red Hat Enterprise Linux 6, VMware ESX 4.1, VMware ESXi 4.1, Microsoft Windows Server 2012, VMware vSphere 5.0, VMware vSphere 5.1, VMware vSphere 5.5
|
Designet for
|
System x3100 M5; x3250 M3; x3300 M4; x3400 M3; x3500 M3; x3530 M4; x3550 M3; x3620 M3; x3630 M3; x3650 M3; x3650 M4 HD; x3755 M3; x3850 X5; x3850 X6; x3950 X5; x3950 X6
|
Produktdatablad |
|
Enhedstype |
Netværksadapter |
Model |
Indstikskort |
Grænseflade (bus) type |
PCI Express 2.0 x8 |
Porte |
10Gb Ethernet x 2 |
Kabeltype |
Ethernet 10GBase-T |
Dataforbindelsesprotokol |
10 Gigabit Ethernet |
Dataoverførselshastighed |
10 Gbps |
Netværks/overføselsprotokol |
TCP/IP, UDP/IP |
Egenskaber |
IPv6 understøttet, Quality of Service (QoS), Jumbo Frames support, IPv4 support, Giant Send Offload (GSO), Receive Side Scaling (RSS), Extended Message-Signaled Interrupts (MSI-X), PXE 2.1 support, TCP Offload Engine (TOE) |
Overensstemmelsesstandarder |
IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 801.1p |
Processor |
BCM57712 |
Interface |
2 x 10GBase-T - RJ-45 |
Udstyr inkluderet |
Simpelt beslag |
Overensstemmelsesstandarder |
VCCI, C-Tick, BSMI, EN 60950, EN 61000-3-2, EN55022, ICES-003, IEC950, RRL, UL 1950, EN 61000-3-3, EN55024, FCC CFR47 Part 15, KC, UL 94 |
Strømforbrug ved drift |
21 Watt |
OS nødvendig |
SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, Microsoft Windows Server 2008, Red Hat Enterprise Linux 6, VMware ESX 4.1, VMware ESXi 4.1, Microsoft Windows Server 2012, VMware vSphere 5.0, VMware vSphere 5.1, VMware vSphere 5.5 |
Bredde |
1.73 cm |
Dybde |
15 cm |
Højde |
7 cm |
Min. driftstemperatur |
10 °C |
Maks. driftstemperatur |
35 °C |
Fugtighedsgrad ved brug |
20 - 80 % (ikke-kondenserende) |
Designet for |
Lenovo System x3100 M5 ¦ Lenovo System x3250 M3 ¦ Lenovo System x3300 M4 ¦ Lenovo System x3400 M3 ¦ Lenovo System x3500 M3 ¦ Lenovo System x3530 M4 ¦ Lenovo System x3550 M3 ¦ Lenovo System x3620 M3 ¦ Lenovo System x3630 M3 ¦ Lenovo System x3650 M3 ¦ Lenovo System x3650 M4 HD ¦ Lenovo System x3755 M3 ¦ Lenovo System x3850 X5 ¦ Lenovo System x3850 X6 ¦ Lenovo System x3950 X5 ¦ Lenovo System x3950 X6 |
These adapters enable affordable 10-Gigabit Ethernet (10 GbE) network performance with cost-effective RJ-45 connections for distances up to 100 meters. They are compatible with the installed base of GbE switching and cabling infrastructure commonly deployed today.
