Produktbeskrivelse
|

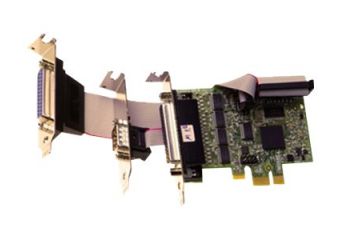

Brainboxes PX-272 - parallel/seriel adapter - PCIe - RS-232 x 5 + IEEE 1284
|
Enhedstype
|
Parallel/seriel adapter
|
Model
|
Indstikskort - lavprofil
|
Grænseflade (bus) type
|
PCI Express
|
Porte
|
RS-232 x 5 + IEEE 1284
|
Dimensioner (B x D x H)
|
0.6 cm x 24 cm x 17 cm
|
Vægt
|
653 g
|
Kabeltype
|
Seriel RS-232
|
Dataforbindelsesprotokol
|
RS-232
|
Dataoverførselshastighed
|
921.6 Kbps
|
Processor
|
1 x Oxford Semiconductor
|
Systemkrav
|
Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2003 x64 Edition, Microsoft Windows Server 2008, Microsoft Windows Server 2008 x64 Edition, Microsoft Windows XP (32/64 bits), Microsoft Windows Vista / 7 / 8 (64-bit versioner), Microsoft Windows Vista / 7 / 8 (32-bit versioner)
|
Producentgaranti
|
Begrænset livtidsgaranti
|
Produktdatablad |
|
Enhedstype |
Parallel/seriel adapter |
Model |
Indstikskort - lavprofil |
Grænseflade (bus) type |
PCI Express |
Porte |
RS-232 x 5 + IEEE 1284 |
Forbindelsesteknologi |
Kabling |
Kabeltype |
Seriel RS-232 |
Dataforbindelsesprotokol |
RS-232 |
Dataoverførselshastighed |
921.6 Kbps |
Processor |
1 x Oxford Semiconductor |
Interface |
1 x IEEE 1284 (EPP/ECP) - 25-pin D-Sub (DB-25) ¦ 4 x RS-232 - 9-pin D-Sub (DB-9) (på kabel) ¦ 1 x RS-232 - 9-pin D-Sub (DB-9) |
Med software |
Drivers & Utilities |
OS nødvendig |
Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2003 x64 Edition, Microsoft Windows Server 2008, Microsoft Windows Server 2008 x64 Edition, Microsoft Windows XP (32/64 bits), Microsoft Windows Vista / 7 / 8 (64-bit versioner), Microsoft Windows Vista / 7 / 8 (32-bit versioner) |
Bredde |
0.6 cm |
Dybde |
24 cm |
Højde |
17 cm |
Vægt |
653 g |
Service & Support |
Begrænset garanti - livstid |
PCI Express Card providing five RS232 serial ports and one LPT port (5 industry standard 9 pin D RS232 ports via a quad cable and 1 x 9 Pin D on a fly lead plus a 25 pin D LPT port on a flylead).
