| Produktbeskrivelse
|

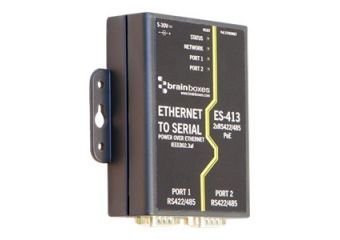

Brainboxes ES-413 - seriel adapter - Ethernet 100 - RS-422/485 x 1
|
| Enhedstype
|
Seriel adapter
|
| Model
|
Ekstern
|
| Grænseflade (bus) type
|
Fast Ethernet
|
| Porte
|
RS-422/485 x 1
|
| Dimensioner (B x D x H)
|
9.63 cm x 10.1 cm x 2.5 cm
|
| Vægt
|
131 g
|
| Kabeltype
|
Ethernet 10Base-T, Ethernet 100Base-TX
|
| Dataforbindelsesprotokol
|
RS-422, RS-485
|
| Overensstemmelsesstandarder
|
IEEE 802.3af
|
| Systemkrav
|
Microsoft Windows 2000, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2012, Windows 8 (32/64 bit)
|
| Producentgaranti
|
Begrænset livtidsgaranti
|
Produktdatablad |
|
| Enhedstype |
Seriel adapter |
| Model |
Ekstern |
| Grænseflade (bus) type |
Fast Ethernet |
| Porte |
RS-422/485 x 1 |
| Forbindelsesteknologi |
Kabling |
| Kabeltype |
Ethernet 10Base-T, Ethernet 100Base-TX |
| Dataforbindelsesprotokol |
RS-422, RS-485 |
| Egenskaber |
Power over Ethernet (PoE) |
| Overensstemmelsesstandarder |
IEEE 802.3af |
| Interface |
2 x RS-422/485 - 9-pin D-Sub (DB-9) ¦ 1 x 100Base-TX - RJ-45 |
| Overensstemmelsesstandarder |
RoHS, WEEE, IP30 |
| Strømforbrug ved drift |
2.15 Watt |
| OS nødvendig |
Microsoft Windows 2000, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2012, Windows 8 (32/64 bit) |
| Bredde |
9.63 cm |
| Dybde |
10.1 cm |
| Højde |
2.5 cm |
| Vægt |
131 g |
| Service & Support |
Begrænset garanti - livstid |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
60 °C |
| Fugtighedsgrad ved brug |
5 - 95 % (ikke-kondenserende) |
ES-413 is an Ethernet to serial device adapter with Power over Ethernet providing access to two RS-422/485 serial ports. High data transfer rates deliver uncompromising performance. Power over Ethernet (PoE) uses IEEE 802.3af standard, compatible with any PoE switch. ES range provides simple instant networked serial ports. RS-485 half duplex configuration with autogating provides trouble free data transmission due to automatic control of data direction. A web interface allows secure configuration and control of the serial ports over a local network or the Internet using any browser.
