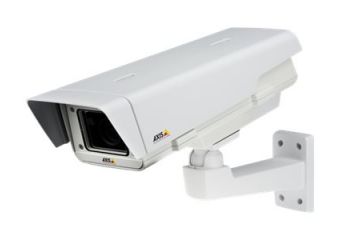

AXIS Q1635-E Network Camera - netværksovervågningskamera
Produktbeskrivelse | AXIS Q1635-E Network Camera - netværksovervågningskamera |
Enhedstype | Netværksovervågningskamera - fast - udendørs |
Audio | Ja: tovejs-audiofunktion, indbygget mikrofon |
Kamera monteringstype | Vægmontering |
Dimensioner (B x D x H) | 16.1 cm x 40.4 cm x 14.2 cm |
Vægt | 3.514 kg |
Farve | Hvid |
Connectivity teknologi | Fortrådet |
Kamera | Farve - Dag/nat |
Optisk zoom | 2.3 x |
Maksimum opløsning | 1920 x 1200 |
Billedhastighed (maks.) | 60 frames pr. sekund |
Video Modes | 1080p |
Billedsensortype | CMOS - 1/2" |
Minimumbelysning | 0.1 lux - farve - F1.3 ¦ 0.01 lux - S/H - F1.3 |
Brændvidde | 4.4 mm - 10 mm |
Objektivmontering | CS-montering |
Objektiv Iris | F/1.3 (DC) |
Interface | Ethernet 10Base-T/100Base-TX |
Kontrolgrænseflade | RS-485, RS-422 |
Spænding | High PoE |
Egenskaber | Eksponeringskompensering, skarphedskontrol, rotering af digitalbillede, hvidbalance, farvekontrol, progressiv scanning, lysstyrkekontrol, spejlbillede, Wide Dynamic Range (WDR), ONVIF support, infrarød skære filter, Privacy Mask Function, Arctic Temperature Control, Elektronisk billedstabilisator (EIS), digital PTZ-funktion, Defog, Zipstream-teknologi |
Producentgaranti | 3 års garanti |
Miljømæssige parametre (operativ) | -40 °C - 60 °C; 10 - 100% relativ luftfugtighed |
Produktdatablad |
|
Enhedstype | Netværksovervågningskamera |
Lydsupport | Ja: tovejs-audiofunktion, indbygget mikrofon |
Kamera monteringstype | Vægmontering |
Connectivity teknologi | Fortrådet |
Bredde | 16.1 cm |
Dybde | 40.4 cm |
Højde | 14.2 cm |
Vægt | 3.514 kg |
Type | Farve - Dag/nat - fast - udendørs |
Digital videoformat | MPEG-4, MJPEG, H.264, AVC |
Max digital video opløsning | 1920 x 1200 |
Video Modes | 1080p |
Belysningsområde | 2 sek - 1/34500 sek |
Minimumbelysning | 0.1 lux - farve - F1.3 ¦ 0.01 lux - S/H - F1.3 |
Opløsning ved digital videooptagelse | 1920 x 1080, 1920 x 1200 |
Billedhastighed (maks.) | 60 frames pr. sekund |
RAM | 512 MB |
Flashhukommelse | 256 MB |
Egenskaber | Eksponeringskompensering, skarphedskontrol, rotering af digitalbillede, hvidbalance, farvekontrol, progressiv scanning, lysstyrkekontrol, spejlbillede, Wide Dynamic Range (WDR), ONVIF support, infrarød skære filter, Privacy Mask Function, Arctic Temperature Control, Elektronisk billedstabilisator (EIS), digital PTZ-funktion, Defog, Zipstream-teknologi |
Type | CMOS 1/2" |
Type | CS-montering |
Optisk zoom | 2.3 x |
Brændvidde | 4.4 mm - 10 mm |
Objektiv Iris | F/1.3 (DC) |
Netværksgrænseflade | Ethernet 10Base-T/100Base-TX |
Netværksprotokoller | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, QOS, CIFS |
Kontrolgrænseflade | RS-485, RS-422 |
Porte | LAN/strøm - RJ-45 ¦ Audio linje-ind/mikrofon - 3,5 mm monostik ¦ Audio linje ud - 3,5 mm stereostik ¦ Seriel RS-485/RS-422 - terminalblok |
Understøttede hukommelseskort | microSD Kort, microSDHC Kort, microSDXC-kort |
Overensstemmelsesstandarder | C-Tick, EN 61000-3-2, EN 61000-3-3, EN55024, IEC 60529 IP66, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, FCC Part 15 B, NEMA Type 4X, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-27, IEC 60068-2-6, IEC 62262 IK10, EN 50121-4, IEC 62236-4, VCCI Class B, IEC 60950-22, EN 60950-22, UL 60950-22, KCC KN22 Class B, AS/NZS CISPR 22 Class B |
Farve | Hvid |
Strømkrav | High PoE |
Strømenhed | 4 Watt |
Service & Support | Begrænset garanti - 3 år |
Min. driftstemperatur | -40 °C |
Maks. driftstemperatur | 60 °C |
Relativ luftfugtighed (operativ) | 10 - 100% |
The IP66 AXIS Q1635-E is protected from dust, rain, snow and sun, and can operate in temperatures from -40°C to 60°C using High PoE. It can also power up at that temperature following a power failure. This feature is known as Arctic Temperature Control. The electronic image stabilization greatly improves video quality in situations where the camera is subject to vibration and the video, without electronic image stabilization, would be troublesome to view.
Along with the common ease-of-installation capabilities, AXIS Q1635-E includes advanced features to help installers to mount the camera. Moreover, the outdoor-ready camera supports one-cable installation thanks to support for PoE. AXIS Q1635-E incorporates Zipstream technology, lowering bandwidth and storage requirements for many common 24/7 surveillance use cases.
