Produktbeskrivelse
|

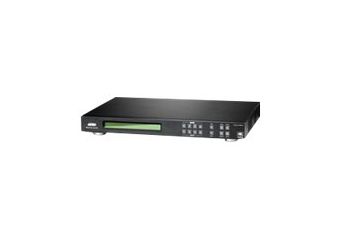

ATEN VM6404H 4x4 4K HDMI Matrix Switch with Scaler - video-/audioswitch - monterbar på stativ
|
Enhedstype
|
Video-/audioswitch
|
Pakningstype
|
Monterbar på stativ 1U
|
Undertype
|
HDMI
|
Egenskaber
|
Firmware kan opgraderes, HDTV Compatible, HDCP kompatibel, 3D-support
|
Overensstemmelsesstandarder
|
HDCP 2.2
|
Effekt
|
AC 120/230 V (50/60 Hz)
|
Dimensioner (B x D x H)
|
43.2 cm x 35.23 cm x 4.4 cm
|
Vægt
|
5.02 kg
|
Produktdatablad |
|
Enhedstype |
Video-/audioswitch |
Pakningstype |
Monterbar på stativ 1U |
Undertype |
HDMI |
Maksimum opløsning |
3840 x 2160 |
Maksimal videobåndbredde |
340 MHz |
Egenskaber |
Firmware kan opgraderes, HDTV Compatible, HDCP kompatibel, 3D-support, HDTV-understøttet |
Overensstemmelsesstandarder |
HDCP 2.2 |
Indbygget udstyr |
Status-LCD |
Statusindikatorer |
Portstatus |
Interface |
4 x HDMI input Type A ¦ 4 x HDMI output Type A ¦ 1 x seriel (RS-232) DB-9 administration ¦ 1 x LAN RJ-45 administration ¦ 1 x IrDA mini-jack |
Strømenhed |
Intern strømforsyning |
Nødvendig spænding |
AC 120/230 V (50/60 Hz) |
Udstyr inkluderet |
Fjernstyring, IR-modtager |
Rackmonteringspakke |
Inkluderet |
Overensstemmelsesstandarder |
RoHS, WEEE |
Bredde |
43.2 cm |
Dybde |
35.23 cm |
Højde |
4.4 cm |
Vægt |
5.02 kg |
Min. driftstemperatur |
0 °C |
Maks. driftstemperatur |
50 °C |
Fugtighedsgrad ved brug |
0 - 80 % (ikke-kondenserende) |
Min. lagertemperatur |
-20 °C |
Maks. Opbevaringstemperatur |
60 °C |
4K is the next generation of image quality for high definition video. 4K delivers eight million pixels which is four times as much detail as 1080p Full HD resolutions. ATEN's VM6404H 4K HDMI Matrix Switch with Scaler is compatible with the two latest 4K video resolution standards: 3840 x 2160 and 4096 x 2160. The VM6404H provides powerful HD processing to produce 4K resolutions across four displays with crystal clear images.
The VM6404H supports 4K@60Hz, HDMI 2.0 and HDCP 2.2 and features seamless switching that employs a FPGA matrix architecture that ensures continuous video streams, real-time control and stable signal transmissions. With a built-in high-performance scaler, the VM6404H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy to use web GUI that lets you create 8 connection profiles that can be customized into different video wall layouts.
