| Produktbeskrivelse
|

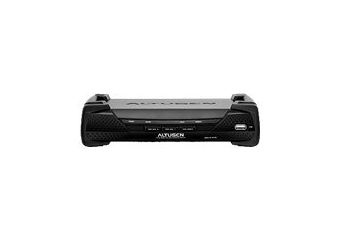

ATEN KA7240 Console Module - KVM / audio forlænger
|
| Enhedstype
|
KVM / audio forlænger - PS/2, USB
|
| Model
|
Ekstern
|
| Maks. overføringsafstand
|
300 m
|
| Dimensioner (B x D x H)
|
22.7 cm x 17.2 cm x 5.5 cm
|
| Vægt
|
1.3 kg
|
Produktdatablad |
|
| Enhedstype |
KVM / audio forlænger |
| Model |
Ekstern |
| Forbindelsesteknologi |
Kabling |
| Tastatur / Musse Grænseflade |
PS/2, USB |
| Maksimum opløsning |
1280 x 1024 @ 60 Hz |
| Maks. overføringsafstand |
300 m |
| Statusindikatorer |
Strøm, tilslutning OK |
| Egenskaber |
Visning på skærm, firmware kan opgraderes |
| Interface |
1 x PS/2 tastatur hun ¦ 1 x PS/2 mus hun ¦ 1 x VGA - HD-15 hun ¦ 2 x netværk - RJ-45 hun ¦ 1 x RS-232 (administration) - DB-9 han ¦ 2 x USB - Type A hun ¦ 1 x tastatur / video / mus (KVM) - 17 pin SPHD hun ¦ 1 x USB 2.0 - Type A hun ¦ 2 x audio (input) - mini jack hun ¦ 2 x audio (output) - mini jack hun |
| Medfølgende ledninger |
1 x tastatur- / mus- / videokabel ¦ 1 x serielt kabel |
| Rackmonteringspakke |
Inkluderet |
| Overensstemmelsesstandarder |
RoHS |
| Strømenhed |
Ekstern strømforsyning |
| Bredde |
22.7 cm |
| Dybde |
17.2 cm |
| Højde |
5.5 cm |
| Vægt |
1.3 kg |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
50 °C |
| Fugtighedsgrad ved brug |
0 - 80 % (ikke-kondenserende) |
The KA7240 Console Module offers secure access to the servers in a Matrix KVM Switch from a PS/2 or USB console (monitor, keyboard, and mouse). It provides an extra computer port for integration with a computer workstation, enabling users to seamlessly switch between the local computer and the servers in the matrix KVM switch. The KA7240 also features an intuitive graphical user interface, the graphical OSD, with easy-to-use menus and icons that enable easy access and efficient management.
KA7240 has a built-in RS-232 port. Administrators can establish a serial terminal login to the console module in order to control the KVM port access for all consoles connected to switch - any console can be assigned to access any KVM port from a single interface point. In addition, an automatic skew compensation function corrects color phase and timing errors that occur over long distance transmissions.
