Produktbeskrivelse
|
ATEN CE 800 - KVM-forlænger - 10Mb LAN
|
Enhedstype
|
KVM-forlænger
|
Model
|
Ekstern
|
Dataforbindelsesprotokol
|
10Mb LAN
|
Maks. overføringsafstand
|
250 m
|
Alternative produktnumre |
CE800B-A7-G, CE800B-AT-G |
Produktdatablad |
|
Enhedstype |
KVM-forlænger |
Model |
Ekstern |
Forbindelsesteknologi |
Kabling |
Dataforbindelsesprotokol |
10Mb LAN |
Maksimum opløsning |
1600 x 1200 @ 60 Hz |
Maks. overføringsafstand |
250 m |
Interface |
4 x USB - Type A hun ¦ 2 x hovedtelefoner - udgang - mini-telefonstereo 3,5 mm hun ¦ 2 x mikrofon (input) - mini jack hun ¦ 2 x VGA - HD-15 hun ¦ 2 x netværk - RJ-45 hun |
Medfølgende ledninger |
1 x tastatur- / mus- / videokabel |
Overensstemmelsesstandarder |
DDC-2B |
Strømenhed |
Ekstern strømforsyning |
Antal installeret |
2 |
Min. driftstemperatur |
0 °C |
Maks. driftstemperatur |
50 °C |
Fugtighedsgrad ved brug |
0 - 80% |
Alternative produktnumre |
CE800B-A7-G, CE800B-AT-G |

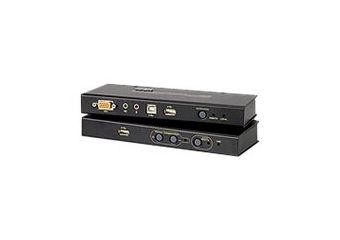

The CE800 USB Console Extender allows access to a computer or USB KVM from a remote console from up to 820 ft. away. This extender is unique in that it not only supports Audio, but both units also support external USB mass storage compliant devices (Flash drives and self powered hard drives).
The unit is an ideal solution for any installations requiring computers to be kept in controlled spaces, whether it be for security or environmental concerns. With the mass storage capabilities of the unit, updates, and patches can be applied without entering your restricted area.
