Produktdatablad |
|
| Produkttype |

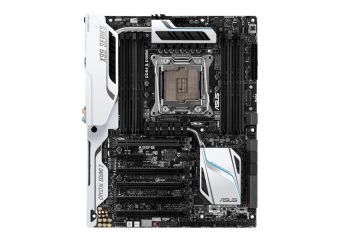

Bundkort - ATX |
| Chipsættype |
Intel X99 Express |
| Processor-socket |
LGA2011-v3 sokkel |
| Max antal processorer |
1 |
| Kompatible processorer |
Core i7 |
| Maks. størrelse |
64 GB |
| Teknologi |
DDR4 |
| Bus Clock |
2133 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2400 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.) |
| Understøttet RAM-integritetskon |
Ikke-ECC |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Intel Extreme Memory Profiles (XMP), quad kanal hukommelses arkitektur |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALC1150 |
| Overensstemmelsesstandarder |
DTS Connect, High Definition Audio, DTS UltraPC II |
| Netværk controller |
Intel I218V |
| Netværks interfaces |
Gigabit Ethernet |
| Ekspansionsåbninger |
1 x CPU ¦ 8 x DIMM 288-pins ¦ 5 x PCIe 3.0 x16 (dual x16 tilstand; triple: x16, x16, x8 tilstand; quad: x16, x8, x8, x8 tilstand; quint: x8 tilstand) ¦ 1 x PCIe 2.0 x4 ¦ 1 x M.2 socket |
| Grænseflade (lagring) |
SATA-600 -stikforbindelser: 8 x 7-pin SATA, 1 x M.2, 1 x SATA Express-port - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 -stikforbindelser: 1 x SATA Express port |
| RAID-egenskaber |
Intel Smart Response Technology |
| Interface |
1 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 8 x USB 3.0 ¦ 1 x audio linje-ud - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x audio linje-ud (bagtil) - mini-jack ¦ 1 x audio linje-ud (centrum/subwoofer) - mini-jack ¦ 1 x TOSLINK |
| Interne interfaces |
4 x USB 2.0 - intern stik ¦ 4 x USB 3.0 - intern stik ¦ 1 x Thunderbolt - intern stik ¦ 1 x SPDIF ud - intern stik |
| Strømkontakter |
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| BIOS-egenskaber |
ASUS EZ Flash 2, USB BIOS Flashback, UEFI BIOS |
| Hardware egenskaber |
Jack retasking, ASUS Anti-Surge Protection, MemOK!, ASUS Q-Design, ESD Guards, Q-DIMM, GPU Boost, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detektions teknologi, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, ASUS Precision Tweaker 2, NVIDIA 3-way SLI Technology Support, Teaming Technology, Intel Extreme Hukommelses Profil (XMP) support, NVIDIA Quad SLI Technology Support, ASUS 8 Phase Power Design, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Intel Smart Response Technology, ASUS USB 3.0 Boost teknologi, Q-Code, AMD Quad CrossFireX-teknologisupport, AMD 3-vejs CrossFireX teknologisupport, ASUS DIGI+ Power Control, Onboard Button, ASUS USB Charger+, Disk Unlocker, ASUS 5X PROTECTION, ASUS Enhanced DRAM Overcurrent Protection, Energy Efficient Ethernet 802.3az, Clear CMOS Button, ASUS Stainless Steel Back I/O, ASUS O.C. Tuner, Turbo LAN, ASUS Crystal Sound 2, ASUS Fan Xpert 3, Dual Intelligent Processors 5, Intel Rapid Recovery Technology, ASUS 4 Phase DRAM Power Design, Memory O.C. Design, ASUS OC Socket |
| Udstyr inkluderet |
I/O- bagvæg, M.2 X4 bøjle |
| Medfølgende ledninger |
3 x Seriel ATA kabel ¦ 1 x SLI bro |
| Med software |
Drivers & Utilities, ASUS EZ Flash 2, ASUS Auto Tuning, ASUS AI Charger+, ASUS AI Suite III, ASUS EZ Update, ASUS HomeCloud, ASUS Turbo App, Antivirus (OEM version) |
| Bredde |
30.5 cm |
| Dybde |
24.4 cm |
