Produktdatablad |
|
| Produkttype |

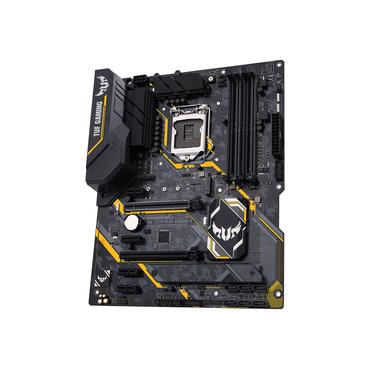

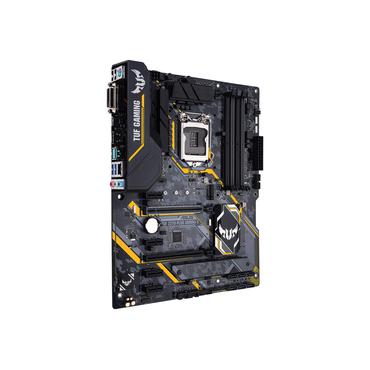

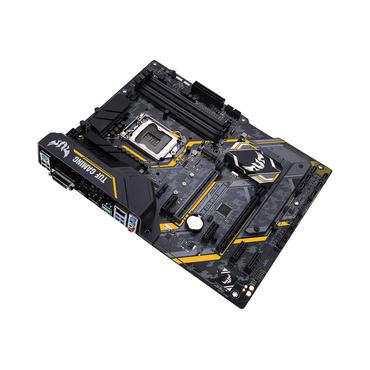

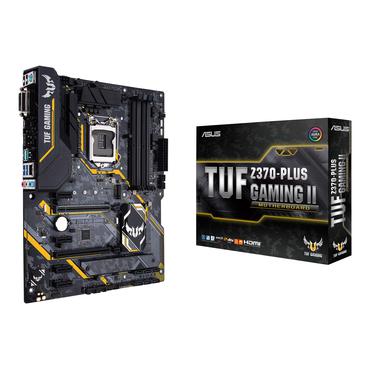

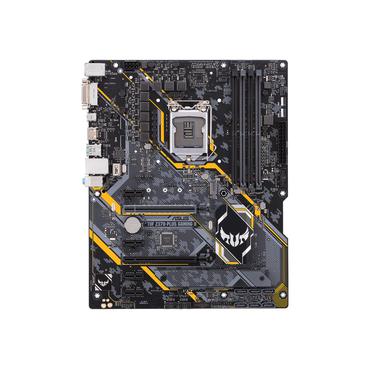

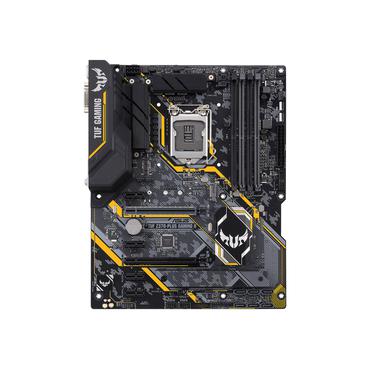

Bundkort - ATX |
| Chipsættype |
Intel Z370 |
| Processor-socket |
LGA1151 Socket |
| Max antal processorer |
1 |
| Kompatible processorer |
Core i5, Core i3, Core i7 (understøtter 8. Generation Intel Core i3 / i5 / i7) |
| Maks. størrelse |
64 GB |
| Teknologi |
DDR4 |
| Bus Clock |
2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.) |
| Understøttet RAM-integritetskon |
Ikke-ECC |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
| Maks. allokeret RAM-størrelse |
1 GB |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALC887 |
| Overensstemmelsesstandarder |
High Definition Audio, DTS Custom |
| Netværk controller |
Intel I219V |
| Netværks interfaces |
Gigabit Ethernet |
| Ekspansionsåbninger |
1 x CPU ¦ 4 x DIMM 288-pins ¦ 1 x PCIe 3.0 x16 (x16, x8/x4+x4 modes) ¦ 1 x PCIe 3.0 x16 (x4-modus) ¦ 4 x PCIe 3.0 x1 |
| Grænseflade (lagring) |
SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -stikforbindelser: 2 x M.2 |
| Interface |
1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x PS/2-tastatur/mus ¦ 1 x audio linje-ud - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x DVI-D ¦ 2 x USB 3.1 Gen 2 ¦ 1 x USB-C |
| Interne interfaces |
4 x USB 2.0 - intern stik ¦ 4 x USB 3.1 Gen 1 - intern stik ¦ 1 x SPDIF ud - intern stik ¦ 1 x audio - intern stik |
| Strømkontakter |
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| BIOS-type (Basic Input/Output System) |
AMI |
| BIOS-egenskaber |
WfM 2.0 understøttet, Flersproget BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, ACPI 6,1 support, SMBIOS 3,1 support, DMI 3,1 support |
| Sov/ Vågn |
Aktivering af LAN (wake on LAN = WOL), vågn på PME |
| Hardware egenskaber |
Jack retasking, ASUS Q-Design, ESD Guards, TUF Engine!, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detektions teknologi, ASUS EPU (Energy Processing Unit), Intel Extreme Hukommelses Profil (XMP) support, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, AMD CrossFireX-teknologisupport, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS O.C. Tuner, Turbo LAN, TUF LANGuard, ASUS Overvoltage Protection, TUF Components, AURA RGB Lighting Control, ASUS SafeSlot, Intel Optane Memory Ready, ASUS Fan Xpert 4 Core, M.2 kølelegeme, ASUS OptiMem, ASUS TUF Protection, 8+1 Phase Power Design |
| Overensstemmelsesstandarder |
Plug and Play |
| Bredde |
30.5 cm |
| Dybde |
24.4 cm |
