Produktdatablad |
|
| Produkttype |

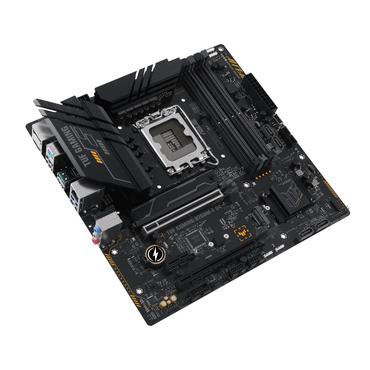

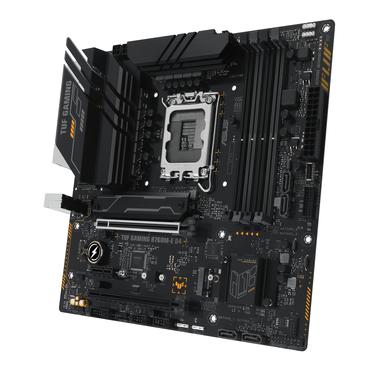

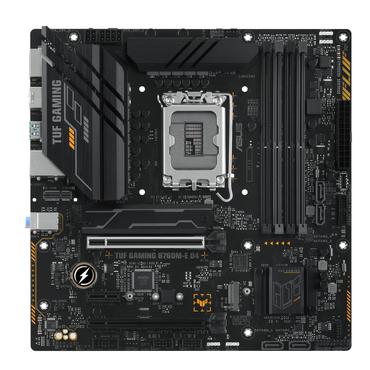

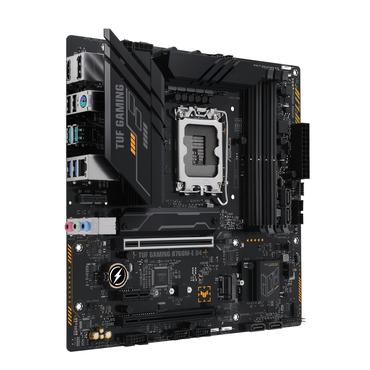

Bundkort - micro ATX |
| Chipsættype |
Intel B760 |
| Processor-socket |
LGA1700 sokkel |
| Max antal processorer |
1 |
| Kompatible processorer |
(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron) |
| Maks. størrelse |
128 GB |
| Teknologi |
DDR4 |
| Bus Clock |
5333 MHz (O.C.), 5066 MHz (O.C.), 5000 MHz (O.C.), 4800 MHz (O.C.), 4600 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4000 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3466 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3200 MHz, 3000 MHz, 2933 MHz, 2800 MHz, 2666 MHz, 2400 MHz, 2133 MHz |
| Understøttet RAM-integritetskon |
Ikke-ECC |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
| Type |
HD Audio (8-kanaler) |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværks interfaces |
2.5 Gigabit Ethernet |
| Ekspansionsåbninger |
1 x CPU ¦ 4 x DIMM 288-pins ¦ 1 x PCIe 4.0 x16 (x4-modus) ¦ 1 x PCIe 4.0 x16 (x4-modus) ¦ 1 x PCIe 4.0 x1 ¦ 1 x M.2 socket (Key E) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M åbning) |
| Grænseflade (lagring) |
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -stikforbindelser: 1 x M.2 |
| Interface |

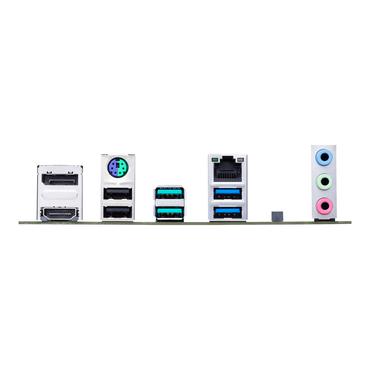

1 x LAN (Gigabit Ethernet) ¦ 1 x audio linje-ind - mini-jack ¦ 1 x audio linje-ud - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 2 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x PS/2-tastatur/mus ¦ 1 x LAN (2.5Gigabit Ethernet) |
| Interne interfaces |
4 x USB 2.0 - intern stik ¦ 2 x USB 3.2 Gen 1 - intern stik ¦ 1 x USB-C 3.2 Gen 2 - intern stik ¦ 1 x SPDIF ud - intern stik ¦ 1 x audio - intern stik ¦ 1 x seriel - intern stik |
| Strømkontakter |
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt, 4-pin ATX12V konnektor |
| BIOS-type (Basic Input/Output System) |
AMI |
| BIOS-egenskaber |
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sov/ Vågn |
Aktivering af LAN (wake on LAN = WOL), vågn på PME |
| Hardware egenskaber |
Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem II, Preboot eXecution Environment (PXE), ASUS EZ DIY, CrashFree BIOS 3, audio jack detektions teknologi, jack retasking, TUF LANGuard, ESD Guards, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS Overvoltage Protection, ASUS DIGI+ VRM, ASUS Q-Design, Q-DIMM, Q-LED, Q-Slot, M.2 Q-Latch, VRM kølelegemedesign, ASUS ProCool, ASUS SafeDIMM, ASUS Aura Sync, ASUS TUF Protection, ASUS Fan Xpert 2+ |

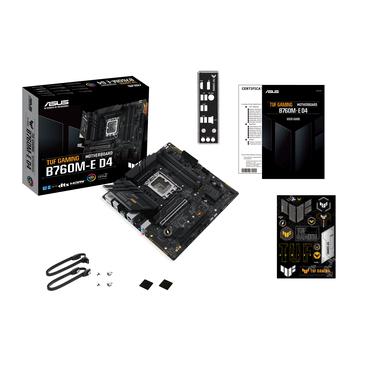

| Udstyr inkluderet |

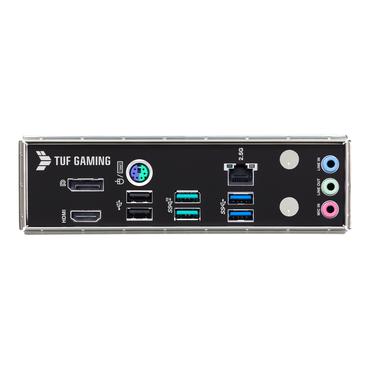

IO-skjold, 1 x M.2 gummipakke, M.2 SSD-skruepakke, TUF GAMING-mærkat |
| Medfølgende ledninger |
2 x Seriel ATA kabel |
| Med software |
Armoury Crate, ASUS AURA Creator, ASUS AI Suite III, ASUS TUF GAMING CPU-Z, Norton 360 for Gamers (60 dages prøvetid), DTS Audio Processing, WinRAR, PC Cleaner |
| Bredde |
24.4 cm |
| Dybde |
24.4 cm |
