| Produktbeskrivelse
|
ASUS RS520-E9-RS8 - rack-monterbar - uden CPU - 0 GB - ingen HDD
|
| Type
|
Server - rack-monterbar
|
| Højde (rackenheder)
|
2U
|
| Serverskalerbarhed
|
2-vejs
|
| Processor
|
Uden CPU
|
| Processor-socket
|
Socket P
|
| RAM
|
0 GB (installeret) / 2048 GB (maks.) - DDR4 SDRAM - ECC
|
| Controller for lagring
|
RAID (SATA 6Gb/s)
|
| Server-lagringsenheder
|
Hot-swap 2.5", 3.5"
|
| Harddisk
|
Ingen HDD
|
| Grafik controller
|
ASPEED AST2500
|
| Videohukommelse
|
64 MB
|
| Netværk
|
GigE
|
| Effekt
|
AC 120/230 V (47 - 63 Hz)
|
| Med OS
|
Intet operativt system
|
| Dimensioner (B x D x H)
|
44.4 cm x 61.5 cm x 8.8 cm
|
| Vægt
|
19.7 kg
|
Produktdatablad |
|
| Type |
Server |
| Produktmodel |
Rack-monterbar - 2U |
| Serverskalerbarhed |
2-vejs |
| Antal bays med frontadgang |
1 |
| Antal hot-swap bays |
10 |
| CPU |
Uden CPU |
| Maks. antal CPU'er |
2 |
| Opgraderbarhed af CPU |
Kan opgraderes |
| CPU Socket |
Socket P |
| Chipsættype |
Intel C621 |
| Installeret størrelse |
0 GB / 2048 GB (maks.) |
| Teknologi |
DDR4 SDRAM - ECC |
| Model |
DIMM 288-PIN |
| Holdere |
16 (Total) / 16 (ubrugt) |
| Egenskaber |
Registreret, Load-Reduced DIMM (LRDIMM), 3DS Load-Reduced DIMM (LRDIMM), 6-kanals hukommelsesarkitektur |
| Understøttet RAM |
512 GB registreret ¦ 1024 GB Load-Reduced ¦ 2048 GB 3DS Load-Reduced |
| Type |
Ingen HDD |
| Type |
1 x RAID |
| Controller-grænsefladetype |
SATA 6Gb/s |
| Antal kanaler |
11 |
| RAID-niveau |
RAID 0, RAID 1, RAID 5, RAID 10 |
| Monitortype |
Ingen. |
| Grafik-processor |
ASPEED AST2500 |
| Videohukommelse |
64 MB |
| Video-interfaces |
VGA |
| Ethernet Ports |
2 x Gigabit Ethernet |
| Ethernet Controller |
Intel I350-AM2 |
| Dataforbindelsesprotokol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Egenskaber |
KVM over IP support |
| Båse |
8 (total) / 8 (fri) x hot-swap 2,5" / 3,5" delt ¦ 1 ekstern 5,25" Slim Line ¦ 2 (total) / 2 (fri) x hot-swap 2.5" |
| Holdere |
2 (total) / 2 (fri) x PCIe 3.0 x16 - halv længde, lav profil ¦ 4 (total) / 4 (fri) x PCIe 3.0 x8 - halv længde, lav profil ¦ 1 (total) / 1 (fri) x PCIe 3.0 x16 / Open Compute Project mezzanine (OCP) 2.0 ¦ 2 (total) / 2 (fri) x M.2 Card - 2242/2260/2280 |
| Interface |
2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 4 x USB 3.0 (2 front, 2 bag) ¦ 2 x VGA (1 front, 1 bag) ¦ 1 x administration (NIC) - RJ-45 |
| Overensstemmelsesstandarder |
FCC Klasse A certificeret, C-Tick, BSMI |
| Enhedstype |
Strømforsyning |
| Maks. antal understøttet |
2 |
| Nødvendig spænding |
AC 120/230 V (47 - 63 Hz) |
| Strømforsyning |
800 Watt |
| 80 PLUS certificering |
80 PLUS Platinum |
| Med OS |
Intet operativt system |
| Bredde |
44.4 cm |
| Dybde |
61.5 cm |
| Højde |
8.8 cm |
| Vægt |
19.7 kg |
| Min. driftstemperatur |
10 °C |
| Maks. driftstemperatur |
35 °C |

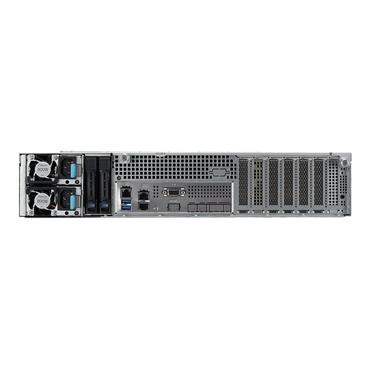

ASUS RS520-E9-RS8 features two additional 2.5" hot-swap storage bays on its back panel and dual onboard M.2 slots that can be used for the main system disk as well as for memory caching. The dual M.2 SSDs can be configured as PCI-E RAID with Intel VROC to speed up storage caching.
