Produktdatablad |
|
| Produkttype |
Bundkort - ATX |
| Chipsættype |
Intel Z390 |
| Processor-socket |
LGA1151 Socket |
| Max antal processorer |
1 |
| Kompatible processorer |
Celeron, Core i5, Core i3, Core i7, Core i9, Pentium Gold (understøtter 9th og 8th Generation Intel Core/Pentium Gold/Celeron) |
| Maks. størrelse |
64 GB |
| Teknologi |
DDR4 |
| Bus Clock |
2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.) |
| Understøttet RAM-integritetskon |
Ikke-ECC |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
SupremeFX (S1220) |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværk controller |
Intel I219V / Aquantia AQC111C / Intel Wireless-AC 9560 |
| Netværks interfaces |
Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac, 5 Gigabit Ethernet |
| Ekspansionsåbninger |
1 x CPU ¦ 4 x DIMM 288-pins ¦ 2 x PCIe 3.0 x16 (x16, x8/x8, x8/x4+x4 tilstande) ¦ 1 x PCIe 3.0 x16 (x4-modus) ¦ 1 x PCIe 3.0 x1 |
| Grænseflade (lagring) |
SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2 ¦ PCIe 3.0 -stikforbindelser: 1 x M.2 |
| Interface |

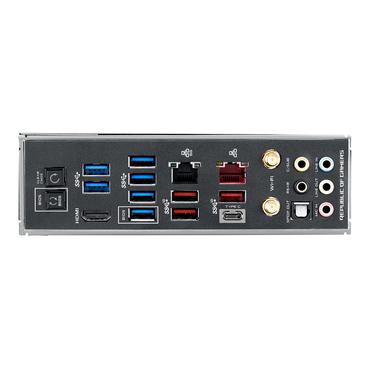

1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x TOSLINK ¦ 1 x LAN (5Gigabit Ethernet) ¦ 1 x audio linje-ind - mini-jack ¦ 1 x audio linje-ud - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x audio linje-ud (centrum/subwoofer) - mini-jack ¦ 1 x audio linje-ud (bagtil) - mini-jack ¦ 3 x USB 3.1 Gen 2 ¦ 6 x USB 3.1 Gen 1 ¦ 1 x USB-C Gen2 |
| Interne interfaces |
4 x USB 2.0 - intern stik ¦ 4 x USB 3.1 Gen 1 - intern stik ¦ 1 x USB 3.1 Gen 2 - intern stik ¦ 1 x audio - intern stik |
| Strømkontakter |
4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| BIOS-type (Basic Input/Output System) |
AMI |
| BIOS-egenskaber |
USB BIOS Flashback, UEFI BIOS, ASUS EZ Flash 3, DMI 3,0 support, ACPI 6,1 support, SMBIOS 3,1 support |
| Sov/ Vågn |
Aktivering af LAN (wake on LAN = WOL) |
| Hardware egenskaber |
C.P.R. (CPU Parameter Recall), jack retasking, ASUS Q-Design, GameFirst, ESD Guards, Q-DIMM, Q-LED, ASUS Extreme Engine Digi+, CrashFree BIOS 3, ASUS Q-Connector, audio jack detektions teknologi, ASUS EPU (Energy Processing Unit), ASUS Extreme Tweaker, NVIDIA 2-way SLI Technology Support, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), Q-Code, SupremeFX Shielding teknologi, AMD 3-vejs CrossFireX teknologisupport, Onboard Button, Preboot eXecution Environment (PXE), Clear CMOS Button, Dual Intelligent Processors 5, LANGuard, AURA RGB Lighting Control, ASUS SafeSlot, Intel Optane Memory Ready, Sonic Radar III, Sonic Studio III, Mem TweakIt, præmonteret I/O-skjold, Sonic Studio Link, ASUS Aura Sync, ASUS OptiMem II, MemOK! II, Armoury Crate, BUPDATER, ESS ES9023P, ROG RGB Armor, Crosschill EK III, ASUS 2" LiveDash |

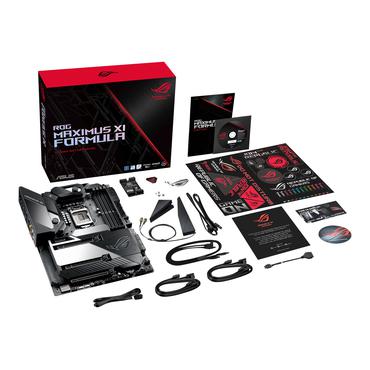

| Udstyr inkluderet |
ASUS 2T2R Wi-Fi bevægelige antenner, 1 x M.2 skrue, termistorkabel, ROG-blæsermærkater, ROG-coastere, RGB (RGBW) LED strip-forlængerkabel, RGB Addressable LED-forlængerkabel |
| Medfølgende ledninger |
Seriel ATA kabel ¦ 1 x SLI bro |
| Med software |
Drivers & Utilities, ASUS AI Charger, ROG CPU-Z, ROG Mem TweakIt Utility, ASUS AI Suite III, ASUS Turbo App, ASUS EZ Flash 3, ASUS ROG RAMCache III, ROG GameFirst V |
| Overensstemmelsesstandarder |
Plug and Play |
| Bredde |
30.5 cm |
| Dybde |
24.4 cm |
| Alternative produktnumre |
ROG MAXIMUS XI FORMULA |
| Alternative EAN-numre |
192876131282 |
