Produktdatablad |
|
| Produkttype |

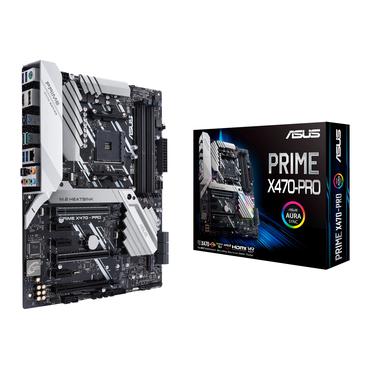

Bundkort - ATX |
| Chipsættype |
AMD X470 |
| Processor-socket |
Socket AM4 |
| Max antal processorer |
1 |
| Kompatible processorer |
Athlon, A serie, Ryzen (understøtter 1st and 2nd Generation Ryzen/Ryzen med Radeon Vega Graphics/7th Generation A-serie/Athlon X4) |
| Maks. størrelse |
64 GB |
| Teknologi |
DDR4 |
| Bus Clock |
2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3466 MHz (O.C.) |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur |
| Maks. allokeret RAM-størrelse |
2 GB |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALCS1220A |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværk controller |
Intel I211-AT |
| Netværks interfaces |
Gigabit Ethernet |
| Ekspansionsåbninger |
1 x CPU ¦ 4 x DIMM 288-pins ¦ 2 x PCIe 3.0 x16 (x16, x8/x8 tilstande (med 1st and 2nd Generation Ryzen CPU); x8 (med Ryzen med Radeon Vega Graphics/AMD 7th Generation A-serie/Athlon X4 CPU)) ¦ 3 x PCIe 2.0 x1 ¦ 1 x PCIe 2.0 x16 (x4-modus) |
| Grænseflade (lagring) |
SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -stikforbindelser: 2 x M.2 |
| Interface |
1 x LAN (Gigabit Ethernet) ¦ 5 x USB 3.1 Gen 1 ¦ 1 x PS/2-tastatur/mus ¦ 1 x audio linje-ind - mini-jack ¦ 1 x audio linje-ud - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x TOSLINK ¦ 1 x USB-C Gen1 ¦ 2 x USB 3.1 Gen 2 ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x audio linje-ud (centrum/subwoofer) - mini-jack ¦ 1 x audio linje-ud (bagtil) - mini-jack |
| Interne interfaces |
4 x USB 2.0 - intern stik ¦ 2 x USB 3.1 Gen 1 - intern stik ¦ 1 x seriel - intern stik ¦ 1 x audio - intern stik ¦ 1 x USB 3.1 Gen 2 - intern stik |
| Strømkontakter |
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| BIOS-type (Basic Input/Output System) |
AMI |
| BIOS-egenskaber |
Flersproget BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, SMBIOS 3,0 support, ACPI 6,1 support |
| Sov/ Vågn |
Aktivering af LAN (wake on LAN = WOL), vågn på PME |
| Hardware egenskaber |
C.P.R. (CPU Parameter Recall), ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, ASUS Precision Tweaker 2, NVIDIA 2-way SLI Technology Support, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, AMD CrossFireX-teknologisupport, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Overvoltage Protection, ASUS Crystal Sound 3, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS 5X Protection III, ASUS SafeSlot Core, 6 + 4 Digital Phase Power Design |
| Udstyr inkluderet |
1 x M.2 skrue, I/O-bagdække |
| Medfølgende ledninger |
2 x Seriel ATA kabel ¦ 1 x SLI bro |
| Med software |
Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, ASUS Turbo App, Antivirus (OEM version), ASUS EZ Flash 3 |
| Bredde |
30.5 cm |
| Dybde |
24.4 cm |
