Produktdatablad |
|
| Produkttype |
Bundkort - ATX |
| Chipsættype |
Intel Z170 |
| Processor-socket |
LGA1151 Socket |
| Max antal processorer |
1 |
| Kompatible processorer |
Pentium, Celeron, Core i5, Core i3, Core i7 |
| Maks. størrelse |
64 GB |
| Teknologi |
DDR4 |
| Bus Clock |
2133 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2400 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3800 MHz (O.C.) |
| Understøttet RAM-integritetskon |
Ikke-ECC |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
| Maks. allokeret RAM-størrelse |
512 MB |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
SupremeFX 2015 |
| Overensstemmelsesstandarder |
DTS Connect, High Definition Audio |
| Netværk controller |
Intel I219V |
| Netværks interfaces |
Gigabit Ethernet |
| Ekspansionsåbninger |
1 x CPU ¦ 4 x DIMM 288-pins ¦ 2 x PCIe 3.0 x16 (dual x8 mode; single kort: x16 mode) ¦ 1 x PCIe 3.0 x16 (x4-modus) ¦ 3 x PCIe 3.0 x1 |
| Grænseflade (lagring) |
SATA-600 / PCIe 3.0 -stikforbindelser: 6 x 7-pin SATA, 1 x M.2, 2 x SATA Express-port - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ ASMedia ASM1061: SATA-600 -stikforbindelser: 2 x 7-pin Seriel ATA - 2 enheder |
| RAID-egenskaber |
Intel Rapid Storage Technology |
| Interface |
1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x USB 3.1 ¦ 1 x USB-C ¦ 2 x USB 3.0 ¦ 4 x USB 2.0 ¦ 1 x PS/2-tastatur/mus ¦ 1 x audio linje-ind - mini-jack ¦ 1 x audio linje-ud - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x audio linje-ud (centrum/subwoofer) - mini-jack ¦ 1 x audio linje-ud (bagtil) - mini-jack ¦ 1 x TOSLINK |
| Interne interfaces |
4 x USB 2.0 - intern stik ¦ 4 x USB 3.0 - intern stik |
| Strømkontakter |
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| BIOS-type (Basic Input/Output System) |
AMI |
| BIOS-egenskaber |
WfM 2.0 understøttet, Flersproget BIOS, ASUS O.C. Profile, USB BIOS Flashback, UEFI BIOS, ACPI 5.0 support, ASUS EZ Flash 3, DMI 3,0 support, SMBIOS 3,0 support |
| Sov/ Vågn |
Aktivering af LAN (wake on LAN = WOL), vågn på PME |
| Hardware egenskaber |
Jack retasking, MemOK!, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, ASUS Q-Connector, audio jack detektions teknologi, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, NVIDIA Quad SLI Technology Support, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), GPU.DIMM Post, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Intel Smart Response Technology, Q-Code, SupremeFX Shielding teknologi, AMD 3-vejs CrossFireX teknologisupport, Onboard Button, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, DirectKey, Disk Unlocker, ASUS Enhanced DRAM Overcurrent Protection, ASUS SSD Secure Erase, Gold Plated Audio Hardware, Preboot eXecution Environment (PXE), Clear CMOS Button, NexFET, ASUS Fan Xpert 3, Dual Intelligent Processors 5, GameFirst III, LANGuard, Sonic Radar II, Sonic SenseAmp, USB 3.1 Boost, ASUS PRO Clock Technology, Sonic Studio II, KeyBot II, Lighting Control |
| Udstyr inkluderet |
ROG Door Hanger, kabelmærkater, 1 x M.2 skrue, I/O-bagdække, ROG-blæsermærkater |
| Medfølgende ledninger |
6 x Seriel ATA kabel ¦ 1 x SLI bro |
| Med software |
Kaspersky Anti-Virus, ASUS AI Charger+, ROG CPU-Z, ROG Mem TweakIt Utility, DAEMON Tools Pro Standard, ASUS WebStorage, ASUS AI Suite III, ROG RAMDisk, ASUS Turbo App, Mobo Connect, PC Cleaner, Media Streamer, HyStream, ASUS RAMCache, Overwolf |
| Overensstemmelsesstandarder |
Plug and Play |
| Bredde |
30.5 cm |
| Dybde |
24.4 cm |
| Alternative produktnumre |

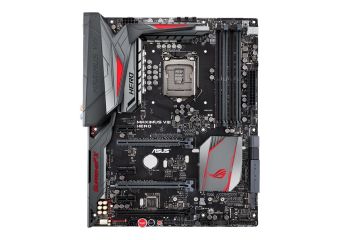

MAXIMUS VIII HERO |
