Produktdatablad |
|
| Produkttype |

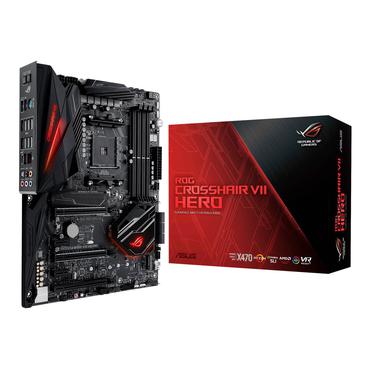

Bundkort - ATX |
| Chipsættype |
AMD X470 |
| Processor-socket |
Socket AM4 |
| Max antal processorer |
1 |
| Kompatible processorer |
Athlon, A serie, Ryzen (understøtter 1st and 2nd Generation Ryzen/Ryzen med Radeon Vega Graphics/7th Generation A-serie/Athlon X4) |
| Maks. størrelse |
64 GB |
| Teknologi |
DDR4 |
| Bus Clock |
2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3466 MHz (O.C.) |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
SupremeFX (S1220) |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværk controller |
Intel I211-AT |
| Netværks interfaces |
Gigabit Ethernet |
| Ekspansionsåbninger |
1 x CPU ¦ 4 x DIMM 288-pins ¦ 2 x PCIe 3.0 x16 (x16, x8/x8, x8/x4 tilstande (med 1st and 2nd Generation Ryzen CPU); x8 (med Ryzen med Radeon Vega Graphics/AMD 7th Generation A-serie/Athlon X4 CPU)) ¦ 2 x PCIe 2.0 x1 ¦ 1 x PCIe 2.0 x16 (x4-modus) |
| Grænseflade (lagring) |
SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 3.0 -stikforbindelser: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2 |
| Interface |
1 x LAN (Gigabit Ethernet) ¦ 8 x USB 3.1 Gen 1 ¦ 1 x audio linje-ind - mini-jack ¦ 1 x audio linje-ud - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x TOSLINK ¦ 1 x USB-C Gen2 ¦ 1 x USB 3.1 Gen 2 ¦ 1 x audio linje-ud (centrum/subwoofer) - mini-jack ¦ 1 x audio linje-ud (bagtil) - mini-jack ¦ 1 x PS/2-tastatur/mus ¦ 2 x USB 2.0 |
| Interne interfaces |
3 x USB 2.0 - intern stik ¦ 2 x USB 3.1 Gen 1 - intern stik ¦ 1 x højttaler - intern stik ¦ 1 x audio - intern stik ¦ 1 x USB 3.1 Gen 2 - intern stik |
| Strømkontakter |
4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| BIOS-type (Basic Input/Output System) |
AMI |
| BIOS-egenskaber |
WfM 2.0 understøttet, Flersproget BIOS, BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3, SMBIOS 3,0 support, ACPI 6,0 support |
| Sov/ Vågn |
Aktivering af LAN (wake on LAN = WOL) |
| Hardware egenskaber |
C.P.R. (CPU Parameter Recall), jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, ASUS Extreme Engine Digi+, CrashFree BIOS 3, ASUS Q-Connector, audio jack detektions teknologi, ASUS EPU (Energy Processing Unit), ASUS Extreme Tweaker, NVIDIA 2-way SLI Technology Support, ASUS TPU (TurboV Processing Unit), Q-Code, SupremeFX Shielding teknologi, AMD CrossFireX-teknologisupport, AMD 3-vejs CrossFireX teknologisupport, ASUS DIGI+ Power Control, Onboard Button, Preboot eXecution Environment (PXE), Dual Intelligent Processors 5, LANGuard, GameFirst IV, ROG SSD Secure Erase, ASUS Gamer's Guardian, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, præmonteret I/O-skjold, ASUS User Profile |
| Udstyr inkluderet |
2 x M.2 skruer, ROG-coastere, RGB (RGBW) LED strip-forlængerkabel, ROG stor mærkat, Cablemod-kupon, ROG-takkekort |
| Medfølgende ledninger |
2 x Seriel ATA kabel ¦ 1 x SLI bro |
| Med software |
Drivers & Utilities, Kaspersky Anti-Virus, ROG CPU-Z, ROG Mem TweakIt Utility, ASUS AI Suite III, ROG RAMDisk, ASUS Turbo App, Overwolf, ASUS EZ Flash 3, ROG Aura, ROG GameFirst IV, ASUS ROG RAMCache II, DAEMON Tools, WinRAR |
| Bredde |
30.5 cm |
| Dybde |
24.4 cm |
